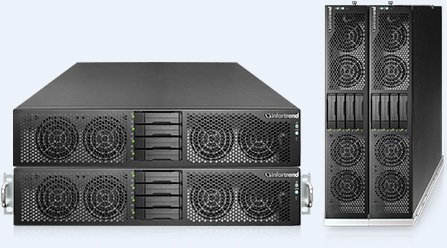

KS 3000U
Compact Server for Edge Environments
The KS 3000U is a compact, high-performance hardware platform engineered to bring robust compute and storage to space-constrained edge environments. It supports diverse GPU configurations and up to four high-speed NVMe SSDs to accelerate localized workloads like AI inference and real-time video analytics. With flexible deployment modes and optional software integration, the KS 3000U is a versatile powerhouse built to handle demanding workloads right at the data source.
| Model | KSa 3004U | KSa 3004UE | |||
|---|---|---|---|---|---|
| Form Factor | 2U 4-bay | ||||
| Mounting Options | Desktop / Rackmount | ||||
| Processors |
Single AMD EPYC™ 8004 Series Processors - KSa 3004U: 16–64 cores per processor - KSa 3004UE: 16–24 cores per processor |
||||
| Cache Memory |
6 x DDR5 DIMM slots Default 128GB, up to 576GB DDR5 RDIMM |
||||
| Supported Drives |
2.5” U.2 NVMe SSD A minimum of four drives is required. Note: For the latest compatibility details, please refer to the Compatibility Guide. |
||||
| PCIe Expansion Slots |
KSa 3004U: - 2 x FHFL PCIe Gen5 x16 slots for GPUs - 1 x HHHL PCIe Gen5 x16 slot - 2 x HHHL PCIe Gen5 x8 slots KSa 3004UE: - 1 x FHHL PCIe Gen5 x16 slot for GPU - 1 x HHHL PCIe Gen5 x16 slot - 2 x HHHL PCIe Gen5 x8 slots Note: The number of supported network adapters per node via PCIe expansion slots depends on the deployment mode (standalone or cluster mode). |
||||
| Network Adapter Options |
- Dual-port 25GbE SFP28 adapter - Dual-port 100GbE QSFP56 adapter Note: Network adapters must be purchased from Infortrend. | ||||
| Max. GPU Slots |
KSa 3004U: 2 x FHFL dual-width GPU slots KSa 3004UE: 1 x FHHL single- or dual-width GPU slot |
||||
| System Fans | 5 | ||||

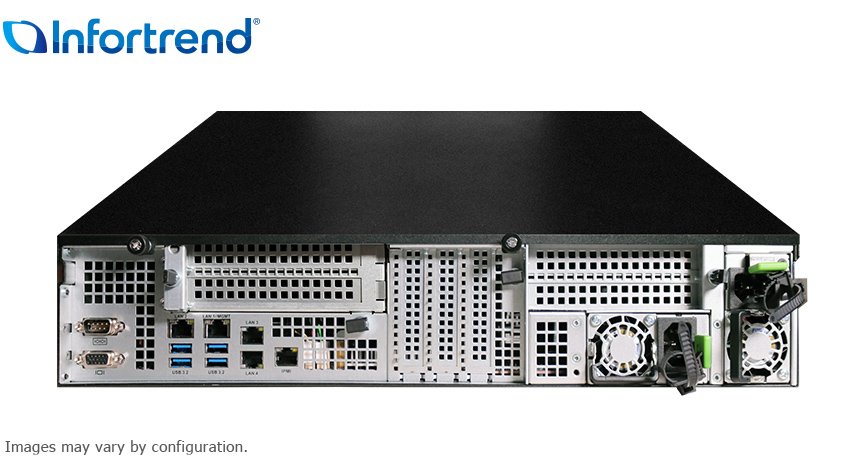

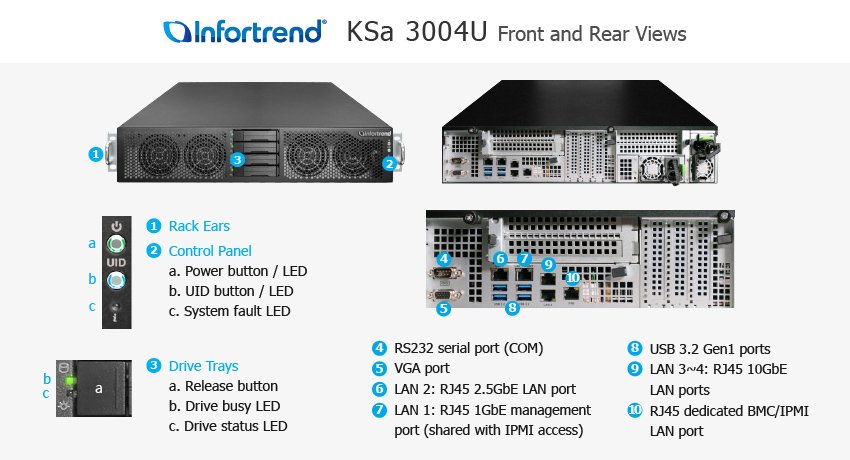

| Rear IO Ports |
1 x RJ45 dedicated BMC/IPMI LAN port 1 x RJ45 1GbE management port (shared with IPMI access) 1 x RS232 serial port (COM) 1 x VGA port 4 x USB 3.2 Gen1 ports 1 x RJ45 2.5GbE LAN port 2 x RJ45 10GbE LAN ports |
||||
| Power Supply Unit |
Power supplies: redundant hot-plug 2 x 1300W (80 PLUS Titanium) AC Input: 100-127VAC @12A, 200-240VAC @8.5A Frequency: 50-60 Hz Note: Please use 200-240VAC for the KS 3004U model. |
||||
| Safety Standards |
Safety: UL, BSMI, CB Electromagnetic compatibility: CE, BSMI, FCC |
||||
| Environmental |
Temperature (without GPU): - Operating: 10°C to 35°C - Non-operating: -40°C to 60°C Altitude: - Operating: Sea level to 3,660 m (12,000 ft) - Non-operating: Sea level to 12,192 m (40,000 ft) Relative humidity: 5% to 95% non-condensing, operating or non-operating |
||||
| Service and Support |
Standard service: 3-year limited hardware warranty and 8x5
phone, web, and email support
(batteries are covered under warranty for 2 years). Warranty extension: standard service can be extended up to 5 years. Service upgrade options: the following service can be upgraded to 5 years - Upgrade: replacement part dispatch on the next business day. - Advanced service: phone, web, and email support + onsite diagnostics on the next business day. - Premium service: phone, web, and email support + onsite diagnostics in 4 hours. - Technical support: installation/maintenance guide, software/firmware download, troubleshooting and support tickets. Product services: product registration, licensing service, product repair, and order status. Note: Options may vary by region. For more details, please contact our sales representatives. |
||||
| Dimensions (W x H x D) |
- 445 x 86.8 x 498 mm (without chassis ears and protrusions) |
||||
| Package Dimensions (W x H x D) |
600 x 215 x 780 mm. |
||||

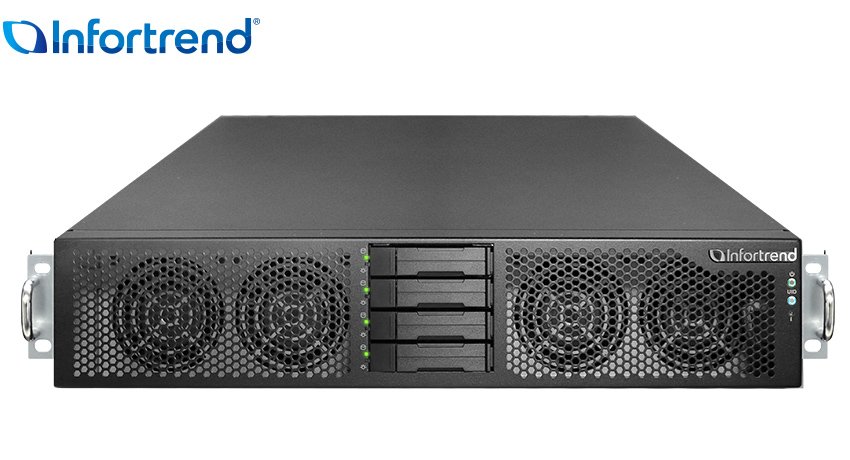

KSa 3004U (2U 4-bay)
KSa 3004UE (Desktop 4-bay)
Filter by ticking your preference
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing bare metal
system including 1xAMD EPYC 8124P,
3x PCIe slots, 2x FHFL GPU slots, 2xPSU, 5x fan
module,4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing bare metal system including 1xAMD EPYC 8124P,
3x PCIe slots, 2x FHFL GPU slots, 4x32GB
memory, 2xPSU,5x fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing bare metal
system including 1xAMD EPYC 8124P, 3x PCIe slots,
2x FHFL GPU slots, 4x64GB memory, 2xPSU,5x fan module,
4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing bare metal system including 1xAMD EPYC 8124P,
3x PCIe slots, 2x FHFL GPU slots, 6x32GB memory,
2xPSU,5x fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing standalone
system including 1xAMD EPYC 8124P,
3x PCIe slots, 2x FHFL GPU slots, 2xPSU, 5x fan
module,4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing standalone
system including 1xAMD EPYC 8124P,
3x PCIe slots, 2x FHFL GPU slots, 4x32GB memory,
2xPSU,5x fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing
standalone system including 1xAMD EPYC 8124P,
3x PCIe slots, 2x FHFL GPU slots, 4x64GB memory,
2xPSU,5x fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing standalone
system including 1xAMD EPYC 8124P,
3x PCIe slots, 2x FHFL GPU slots, 6x32GB memory,
2xPSU,5x fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing HA
system including 1x AMDEPYC 8124P,
3x PCIe slots, 2x FHFL GPU slots, 2xPSU, 5x
fan module, 4xdrive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing HA system
including 1x AMDEPYC 8124P,
3x PCIe slots, 2x FHFL GPU slots, 4x32GB memory,
2xPSU, 5xfan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing HA
system including 1x AMDEPYC 8124P,
3x PCIe slots, 2x FHFL GPU slots, 4x64GB memory,
2xPSU, 5xfan module, 4x drive trays and 1x rackmount kit..
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing HA system including 1x AMDEPYC
8124P, 3x PCIe slots, 2x FHFL GPU slots, 6x32GB
memory, 2xPSU, 5xfan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing cluster
system including 1xAMD EPYC 8124P, 3x PCIe slots, 2x
FHFL GPU slots, 2xPSU, 5x fan module,4x drive trays and 1x rackmount kit..
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing cluster system
including 1xAMD EPYC 8124P, 3x PCIe slots, 2x FHFL
GPU slots, 4x32GB memory, 2xPSU,5x fan module,
4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing cluster system
including 1xAMD EPYC 8124P, 3x PCIe slots, 2x FHFL
GPU slots, 4x64GB memory, 2xPSU,5x fan module,
4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing cluster system including 1xAMD
EPYC 8124P, 3x PCIe slots, 2x FHFL GPU slots,
6x32GB memory, 2xPSU,5x fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing bare metal
system including 1xAMD EPYC 8224P, 3x PCIe slots,
2x FHFL GPU slots, 2xPSU, 5x fan module,4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing bare metal system
including 1xAMD EPYC 8224P, 3x PCIe slots, 2x FHFL
GPU slots, 4x32GB memory, 2xPSU,5x fan module,
4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing bare metal system
including 1xAMD EPYC 8224P, 3x PCIe slots,
2x FHFL GPU slots, 4x64GB memory, 2xPSU,5x fan
module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing bare metal system
including 1xAMD EPYC 8224P, 3x PCIe slots,
2x FHFL GPU slots, 6x32GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing standalone
system including 1xAMD EPYC 8224P, 3x PCIe
slots, 2x FHFL GPU slots, 2xPSU, 5x
fan module,4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing standalone system
including 1xAMD EPYC 8224P, 3x PCIe slots,
2x FHFL GPU slots, 4x32GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing standalone system
including 1xAMD EPYC 8224P, 3x PCIe slots, 2x
FHFL GPU slots, 4x64GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing standalone system
including 1xAMD EPYC 8224P, 3x PCIe slots,
2x FHFL GPU slots, 6x32GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing HA
system including 1x AMDEPYC 8224P, 3x PCIe
slots, 2x FHFL GPU slots, 2xPSU, 5x
fan module, 4xdrive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing HA system including 1x
AMDEPYC 8224P, 3x PCIe slots, 2x FHFL GPU
slots, 4x32GB memory, 2xPSU, 5xfan module,
4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing HA system including
1x AMDEPYC 8224P, 3x PCIe slots, 2x FHFL
GPU slots, 4x64GB memory, 2xPSU, 5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing HA system including
1x AMDEPYC 8224P, 3x PCIe slots, 2x
FHFL GPU slots, 6x32GB memory, 2xPSU,
5xfan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing cluster
system including 1xAMD EPYC 8224P, 3x PCIe
slots, 2x FHFL GPU slots, 2xPSU, 5x
fan module,4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing cluster system
including 1xAMD EPYC 8224P, 3x PCIe slots, 2x
FHFL GPU slots, 4x32GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing cluster system including
1xAMD EPYC 8224P, 3x PCIe slots, 2x FHFL
GPU slots, 4x64GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing cluster system including
1xAMD EPYC 8224P, 3x PCIe slots, 2x
FHFL GPU slots, 6x32GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing bare metal
system including 1xAMD EPYC 8534P, 3x
PCIe slots, 2x FHFL GPU slots, 2xPSU, 5x
fan module,4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing bare metal system including
1xAMD EPYC 8534P, 3x PCIe slots, 2x
FHFL GPU slots, 4x32GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing bare metal system
including 1xAMD EPYC 8534P, 3x PCIe slots,
2x FHFL GPU slots, 4x64GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing bare metal system including
1xAMD EPYC 8534P, 3x PCIe slots, 2x FHFL
GPU slots, 6x32GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing standalone
system including 1xAMD EPYC 8534P, 3x PCIe
slots, 2x FHFL GPU slots, 2xPSU, 5x
fan module,4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing standalone system
including 1xAMD EPYC 8534P, 3x PCIe slots,
2x FHFL GPU slots, 4x32GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing standalone system
including 1xAMD EPYC 8534P, 3x PCIe slots,
2x FHFL GPU slots, 4x64GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing standalone system
including 1xAMD EPYC 8534P, 3x PCIe slots,
2x FHFL GPU slots, 6x32GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing
HA system including 1x AMDEPYC 8534P, 3x PCIe
slots, 2x FHFL GPU slots, 2xPSU, 5x f
an module, 4xdrive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing HA system
including 1x AMDEPYC 8534P, 3x PCIe slots,
2x FHFL GPU slots, 4x32GB memory, 2xPSU,
5xfan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing HA system
including 1x AMDEPYC 8534P, 3x PCIe slots,
2x FHFL GPU slots, 4x64GB memory, 2xPSU,
5xfan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing HA system
including 1x AMDEPYC 8534P, 3x PCIe slots,
2x FHFL GPU slots, 6x32GB memory, 2xPSU,
5xfan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing
cluster system including 1xAMD EPYC 8534P,
3x PCIe slots, 2x FHFL GPU slots, 2xPSU,
5xfan module,4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing cluster system
including 1xAMD EPYC 8534P, 3x PCIe slots,
2x FHFL GPU slots, 4x32GB memory, 2xPSU,
5x fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing cluster system
including 1xAMD EPYC 8534P, 3x PCIe slots,
2x FHFL GPU slots, 4x64GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
KSa 3004U 2U/4bay U.2 NVMe Edge Computing cluster system
including 1xAMD EPYC 8534P, 3x PCIe slots,
2x FHFL GPU slots, 6x32GB memory, 2xPSU,5x
fan module, 4x drive trays and 1x rackmount kit.
Qty
Dual-Port 100 Gb/s Ethernet Network Interface Card
Qty
Dual-Port 25 Gb/s Ethernet Network Interface Card
Qty
U.2 NVMe SSD, PCIe Gen4, 1.92TB, DWPD=1 for KS model
Qty
U.2 NVMe SSD, PCIe Gen4, 15.36TB, DWPD=1 for KS model
Qty
U.2 NVMe SSD, PCIe Gen4, 3.84TB, DWPD=1 for KS model
Qty
U.2 NVMe SSD, PCIe Gen4, 7.68TB, DWPD=1 for KS model
Qty
U.2 NVMe SSD, PCIe Gen5, 1.92TB, DWPD=1 for KS model
Qty
U.2 NVMe SSD, PCIe Gen5, 15.36TB, DWPD=1 for KS model
Qty
U.2 NVMe SSD, PCIe Gen5, 3.84TB, DWPD=1 for KS model
Qty
U.2 NVMe SSD, PCIe Gen5, 7.68TB, DWPD=1 for KS model
Qty
KS 3000U AMD Platform Standalone Edition Software License
Qty
KS 3000U AMD Platform HA Edition Software License
Qty
KS 3000U AMD Platform Advanced Edition Software License
Qty
Ethernet 25G passive copper cable, SFP28, 1m
Qty
Ethernet 25G passive copper cable, SFP28, 2m
Qty
100G QSFP28 optical transceiver, multi-mode
Qty
25GbE SFP28 optical transceiver, LC, wave-length 850nm, multi-mode
Qty
Hisense 25GbE SFP28 optical transceiver, LC, wave-length 850nm, multi-mode
Qty
100G QSFP28 to QSFP28 passive direct attach copper (DAC) cable, 1m
Qty
100G QSFP28 to QSFP28 passive direct attach copper (DAC) cable, 2m
Qty
100G QSFP28 to QSFP28 passive direct attach copper (DAC) cable, 3m
Qty
Slide rail assembly, 23"~37" rack depth
Qty
1300W Power supply Titanium(EU version)
Qty
Cable organizer for KSa 3004U/UE
Qty
L4 GPU FAN DUCT Left for KSa 3004U/UE
Qty
L4 GPU FAN DUCT Right for KSa 3004U
Qty
Stand component for KSa 3004UE
Qty
Cooling fan module for KSa 3004U/UE (16500rpm)
Qty
Cooling fan module for KSa 3004UE (8500rpm)
Qty
Cooling fan module for KSa 3004U (16300rpm)
Qty
SFF drive tray for U.2 NVMe SSD
Qty
32GB DDR-V ECC R-DIMM
Qty
64GB DDR-V ECC R-DIMM
