Private Cloud Solution

Enterprise Cloud Family

Overview

Itbyt Enterprise Cloud Family is a fully integrated cloud platform that combines high-performance computing hardware, GPU acceleration, and a comprehensive pre-installed software environment. With essential system services, an integrated Application Market, and built-in Kubernetes, it simplifies application deployment, orchestration, and infrastructure management. Designed for enterprise data centers and headquarters environments, the platform enables rapid, turnkey deployment with high availability and a scalable architecture. Its flexible design supports seamless cluster expansion from 3 to 20 nodes, while AI-powered monitoring and predictive analytics enhance operational efficiency, resource utilization, and system reliability.

Built to support demanding workloads, the Enterprise Cloud Family is well suited for AI training, big data analytics, high-performance computing (HPC), and other compute-intensive enterprise applications.

GPU

GPU INTENSIVE

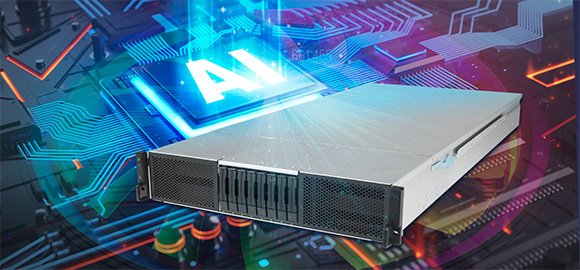

KS 5008U

The KS 5008U is optimized for GPU-intensive workloads, featuring dual CPUs, support for up to four NVIDIA GPUs, and up to eight U.2 NVMe SSDs. Ideal for AI training, generative AI, and 3D rendering, it delivers high-density GPU performance with efficient resource utilization.

HPC

GENERAL PURPOSE

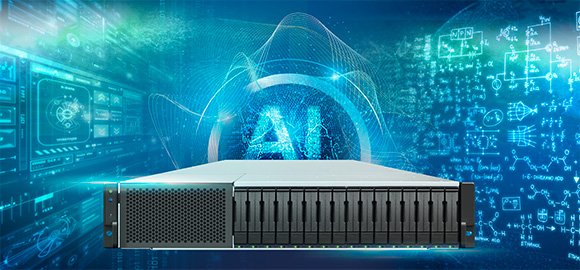

KS 5016U

The KS 5016U is designed for versatile AI and HPC workloads, featuring dual CPUs, support for up to two high-performance GPUs, and up to 16 NVMe SSDs. Its balanced architecture enables deep learning inference, chatbots, and AI-driven manufacturing.

DATA

STORAGE INTENSIVE

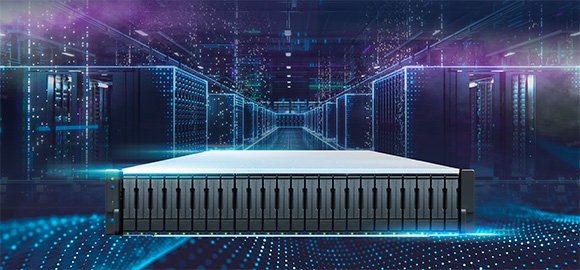

KS 5024U

The KS 5024U is optimized for data-centric applications requiring high-speed storage access, featuring dual CPUs and support for up to 24 NVMe SSDs per node. Ideal for email servers, databases, CRM systems, and continuous factory data logging.

Specification	KSa 5008U	KSi 5008U	KSa 5016U	KSi 5016U	KSi 5024U
◆ Workloads	Heavy AI training & rendering	Heavy AI training & rendering	General purpose AI & manufacturing	General purpose AI & manufacturing	Data logging, CRM & DB systems
▣ Form Factor	2U	2U	2U	2U	2U
⚙ Mounting	Rackmount	Rackmount	Rackmount	Rackmount	Rackmount
▦ Processor	2x AMD EPYC™ 9004/9005 processors	2x 4^th or 5^th Gen Intel® Xeon® Scalable processors	2x AMD EPYC™ 9004/9005 processors	2x Intel® Xeon® 4^th Gen Scalable processors	2x Intel® Xeon® 4^th Gen Scalable processors
▤ Max Memory	Up to 1.5TB DDR5	Up to 2TB DDR5	Up to 1.5TB DDR5	Up to 2TB DDR5	Up to 2TB DDR5
▥ GPU	Up to 4x FHFL dual-width	Up to 4x FHFL dual-width	Up to 2x FHFL dual-width	Up to 2x FHFL dual-width	N/A

← Swipe to view all specifications →

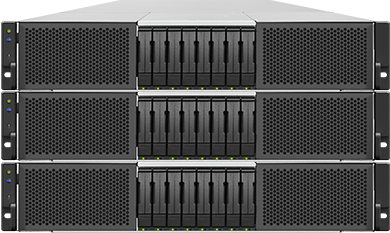

KS 5000U

View Datasheet

Features

High Performance

Powered by dual Intel® Xeon® Scalable or AMD EPYC™ 9004/9005 Series processors, KS 5000U delivers up to 320 CPU cores per node and scales up to 6,400 cores in a cluster, enabling exceptional performance for AI, HPC, and data-intensive workloads.

GPU Computing: Each KS 5000U node supports up to 4 Nvidia GPU cards, which makes it ideal for AI, deep learning, and high-performance computing (HPC) applications at enterprise data centers.

Exceptional Computing Power: With each KS node featuring up to 320-core computing power, the entire cluster can provide up to 6400-core computing power.

High-Speed Storage: Equipped with U.2 NVMe SSDs, the KS node provides storage delivering up to 1M IOPS, 30GB/s read, and 25GB/s write storage throughput performance for running applications.

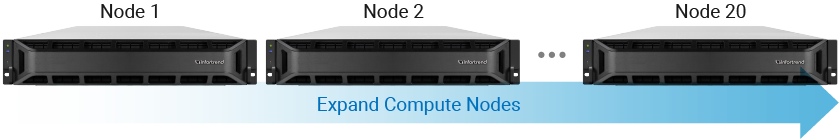

Scalability

KS 5000U features a scalable cluster architecture that starts with 3 nodes and seamlessly scales out to 20 nodes as workload demands grow.

Expand compute nodes: Users can start with a three-node cluster and expand non-disruptively as compute demands increase by adding one node at a time, enabling efficient resource scaling and optimal application performance.

Expand storage capacity: KS supports various storage expansion options, allowing connection to EonStor GS unified storage or EonStor DS SAN storage.

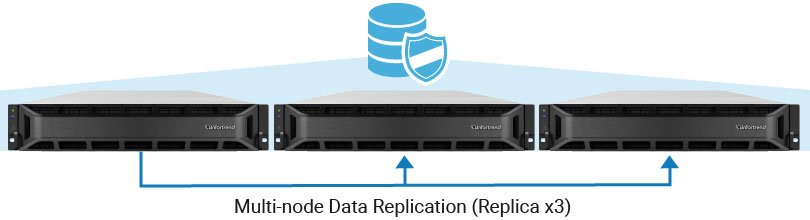

Flexible Data Protection by Application

KS supports multi-node data replication (Replica x2 or x3) and allows replication to be configured individually for each application. Critical applications, such as manufacturing systems, databases, and CRM applications, can be configured with tailored redundancy policies (Replica x2 or x3) to ensure optimal data protection. For less critical applications, such as non-production workloads, replication may not be necessary, allowing you to allocate resources where they are most needed. This approach provides greater flexibility in data protection management.

Backup and Restore

For greater flexibility, KS offers a backup of containers and VMs. By backing up all application data and settings, KS ensures consistency for containerized applications, helping enterprises maintain seamless operations.

Enterprises can streamline their data protection strategies with remote backup to cloud or remote storage. To improve backup efficiency, KS offers a variety of features, including scheduled backups, incremental backups, and a comprehensive monitoring dashboard to oversee backup status and ensure the process runs smoothly.

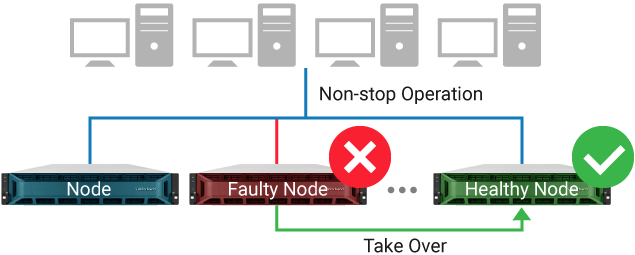

High Availability

KS is designed with automatic node failure detection and failover functions. The system can automatically detect node failures and quickly transfer applications to healthy nodes. With application protection, KS ensures that even in the event of a physical node failure, the application services continue to run without any downtime.

A faulty node can be completely removed from and rejoined to the cluster system after repair, without requiring system downtime. This greatly enhances availability and ensures the continuity of enterprise applications

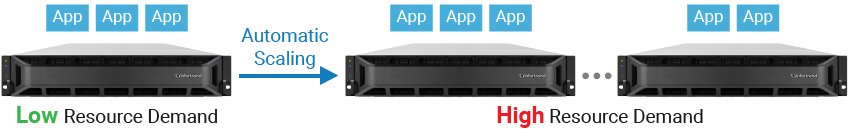

Automatic Scaling

KS can dynamically scale cloud-native applications across nodes according to real-time node load conditions. It achieves this by continuously monitoring the hardware load of computing nodes, including metrics such as CPU, GPU, memory, storage space, and network usage.

When computing demands for an application increase, the system reallocates resources by automatically scaling the application to underutilized nodes. Conversely, when the demand decreases, KS automatically downscales resources to optimize efficiency. This dynamic adjustment ensures consistent performance and efficient resource utilization.

Additionally, KS resolves a key auto-scaling challenge in the open-source Kubernetes version. For stateful applications that rely on databases, scaling is often problematic because data between nodes is not synchronized. Our solution allows stateful applications to scale seamlessly by storing data separately in external storage, ensuring consistent access and preventing data mismatches, even as the application scales.

AI Monitoring and Forecasting

EonSight is an AI-driven intelligent monitoring solution that provides comprehensive resource management from clusters down to individual nodes. The system automatically establishes performance baselines and conducts real-time deviation detection, enabling it to identify anomalies and trigger alerts in real time. The management system also features proactive prediction capabilities, forecasting system usage and offering recommendations for resource adjustments or expansion, allowing enterprises to take preventive measures before issues arise.

Optimized GPU Resource Utilization

GPU sharing for resource efficiency: This allows multiple applications to share the same GPU resources, enabling applications to compute simultaneously while dynamically adjusting GPU resources based on each application’s needs.

GPU passthrough to boost performance: This allows VMs to directly access physical GPU resources, achieving performance nearly equivalent to running directly on the host. This feature addresses the typical limitations of VMs, where GPU performance is constrained by hardware virtualization. It significantly benefits GPU-intensive applications such as 3D rendering, machine learning, and HPC.

Application Market

KS offers an Application Market with applications across more than 10 categories, including manufacturing, IT services, AI/machine learning, big data, DevOps tools, e-commerce, and business applications, addressing the diverse needs of customers. Enterprises can also create custom applications on KS and share them across different departments, effectively reducing redundant work. Infortrend offers KS for running applications but excludes implementation services, requiring customers to build or deploy their own applications.

User-Friendly Management

KS offers a user-friendly solution for efficient management with EonOne and EonKube graphical user interfaces.

EonOne provides comprehensive hardware monitoring features to ensure smooth system operation and optimal performance. Additionally, it includes a simplified management interface, making it easy for IT staff to scale out computing nodes or expand external storage nodes.

EonKube is designed for application management, enabling enterprises to manage both containerized applications and virtual machines on a single platform. This facilitates a smooth transition to cloud-native architecture. The built-in Application Market provides applications across various fields, effectively addressing diverse business needs. With its intuitive GUI interface, users can deploy applications easily, eliminating the need for complex deployment files such as YAML. Additionally, EonKube comes with robust monitoring and security features, ensuring precise resource management and enhanced system performance.

Support for Cloud-Native and Traditional Applications

Run Different Application Types: KS provides a built-in Kubernetes platform for running cloud-native containerized applications. With a featured hypervisor, KS enables support for traditional applications, such as Microsoft applications, by running VMs. This allows enterprises to consolidate all workloads on a single platform.

Various OS Compatibility: KS supports various mainstream Windows and Linux versions, offering extensive operating system compatibility to meet diverse business and application needs.

Easy Deployment

KS features an intuitive installation wizard that guides users through the entire setup process, which can be completed in under 30 minutes. By streamlining the workflow and integrating hardware and network diagnostics, KS ensures a smooth and efficient deployment.
