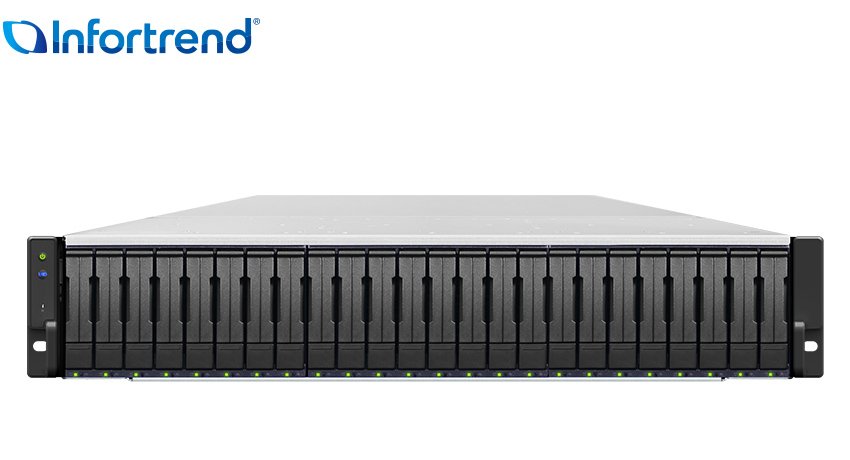

KS 5000U
Compact Server for Edge Environments

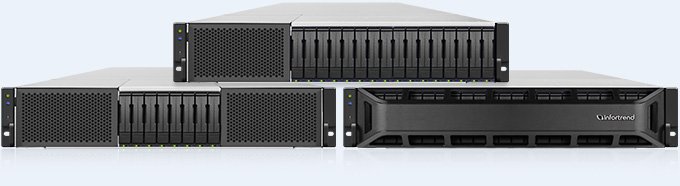

The KS 5000U is a high-performance enterprise hardware platform engineered to deliver scalable compute and storage for modern edge computing and enterprise private cloud environments. Available in GPU-accelerated, general-purpose, or storage-focused 2U configurations, it supports a versatile array of processors, GPUs, and high-capacity U.2 NVMe SSDs. Combining modular hardware flexibility and optional software integration, the KS 5000U is a solid foundation to power business-critical enterprise workloads.
| Model | KSa 5008U | KSi 5008U | KSa 5016U | KSi 5016U | KSi 5024U |
|---|---|---|---|---|---|

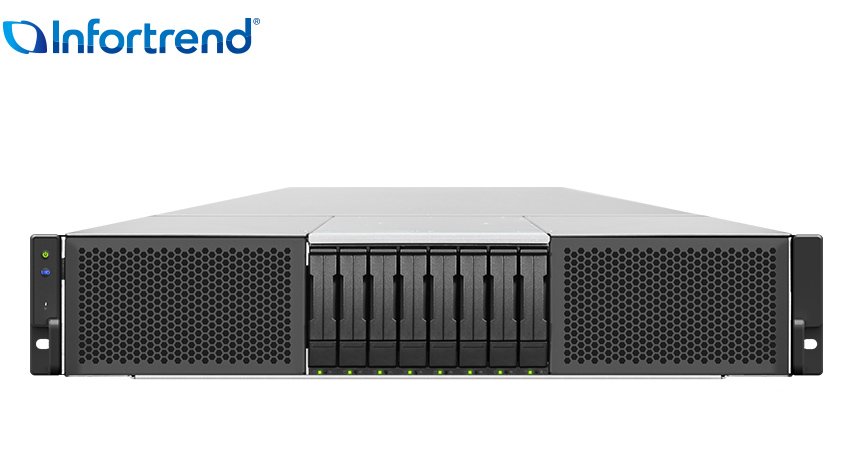

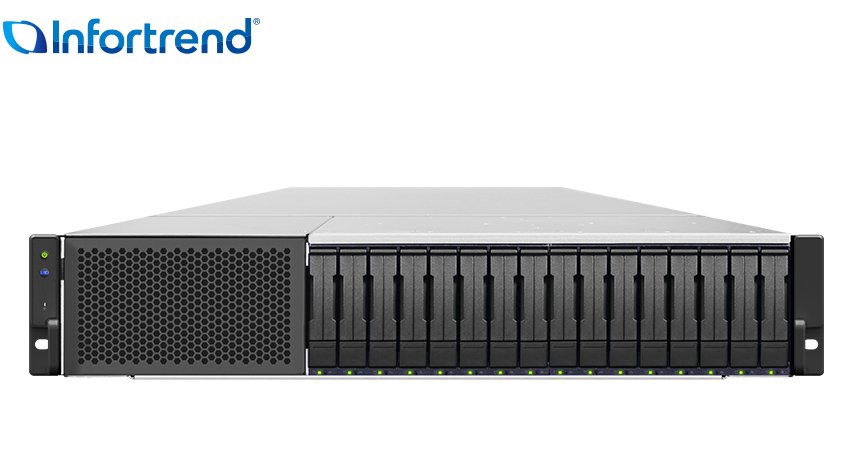

| Form Factor | 2U 8-bay | 2U 8-bay | 2U 16-bay | 2U 16-bay | 2U 24-bay |
| Mounting Options | Rackmount | ||||
| Processor |
KSa 5008U/5016U: Dual AMD EPYC™
9004/9005 Series Processors
(16–160 cores per processor) KSi 5008U: - Dual 4th Gen Intel® Xeon® Scalable Processors (12–32 cores per processor) - Dual 5th Gen Intel® Xeon® Scalable Processors (64 cores per processor) KSi 5016U/5024U: Dual 4th Gen Intel® Xeon® Scalable Processors (12–32 cores per processor) |
||||
| Cache Memory |
KSa 5008U/5016U: 24 x DDR5 DIMM slots,
default 192GB, up to 1.5TB DDR5 RDIMM KSi 5008U/5016U/5024U: 32 x DDR5 DIMM slots, default 128GB, up to 2TB DDR5 RDIMM |
||||
| Supported Drives |
2.5" U.2 NVMe SSD Note: 1. A minimum of four drives is required. 2. For the latest compatibility details, please refer to the Compatibility Guide . |
||||
| PCIe Expansion Slots |
KSa 5008U: - 4 x FHFL PCIe Gen5 x16 slots for GPUs - 3 x FHHL PCIe Gen5 x16 slots - 1 x OCP NIC 3.0 PCIe Gen5 x16 slots KSi 5008U: - 4 x FHFL PCIe Gen5 x16 slots for GPUs - 2 x FHHL PCIe Gen5 x16 slots - 2 x OCP NIC 3.0 PCIe Gen5 x16 slots KSa 5016U: - 2 x FHFL PCIe Gen5 x16 slots for GPUs - 3 x FHHL PCIe Gen5 x16 slots - 1 x OCP NIC 3.0 PCIe Gen5 x16 slots KSi 5016U: - 2 x FHFL PCIe Gen5 x16 slots for GPUs - 2 x FHHL PCIe Gen5 x16 slots - 2 x OCP NIC 3.0 PCIe Gen5 x16 slots KSi 5024U: - 2 x FHHL PCIe Gen5 x16 slots - 2 x OCP NIC 3.0 PCIe Gen5 x16 slots |
||||
| Network Adapter Options |
Dual-port 25GbE SFP28 OCP NIC 3.0 adapter Dual-port 100GbE QSFP56 adapter Note: Network adapters must be purchased from Infortrend. |
||||
| Max. FHFL Dual-Width GPUs |
KSa 5008U: 4 KSi 5008U: 4 KSa 5016U: 2 KSi 5016U: 2 |
||||
| System Fans | 6 | ||||

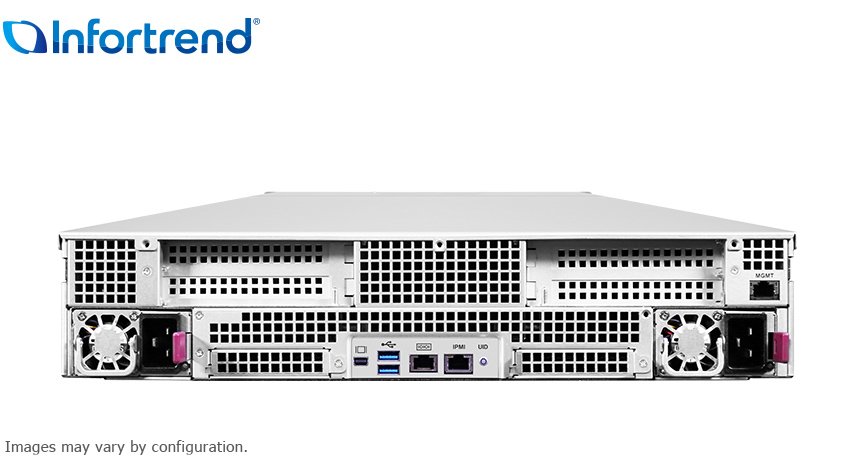

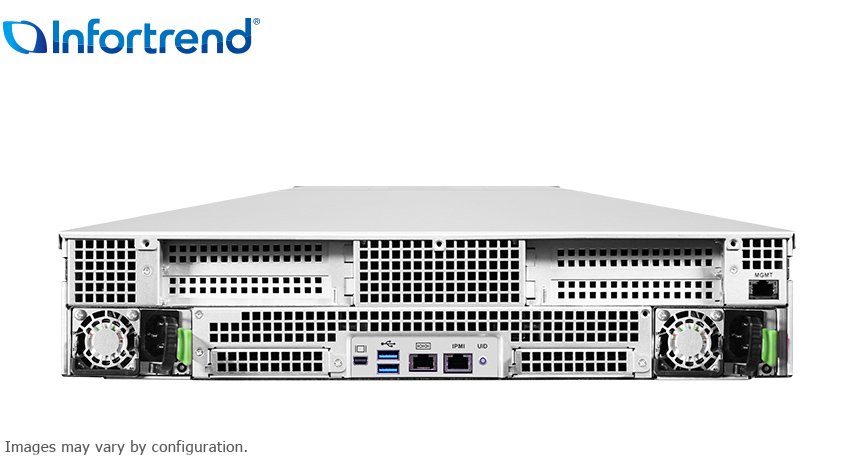

| Rear I/O Ports |

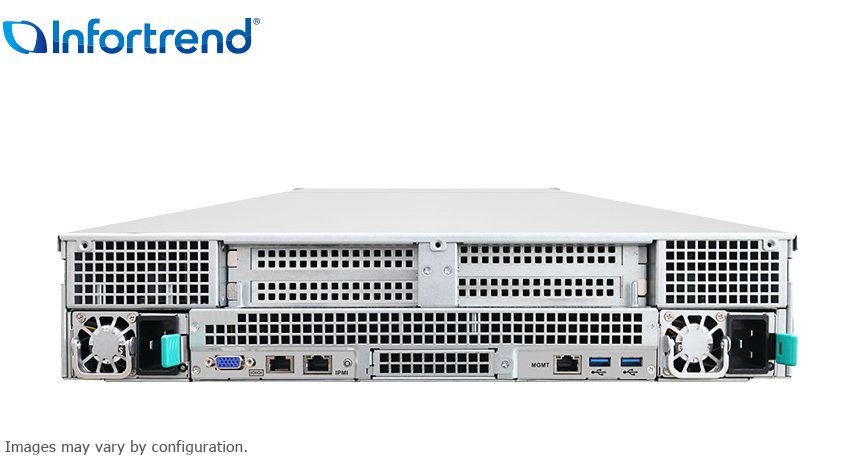

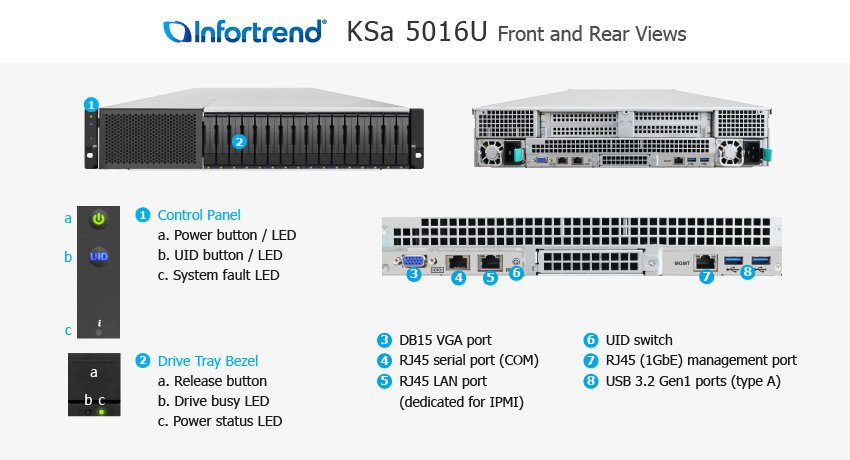

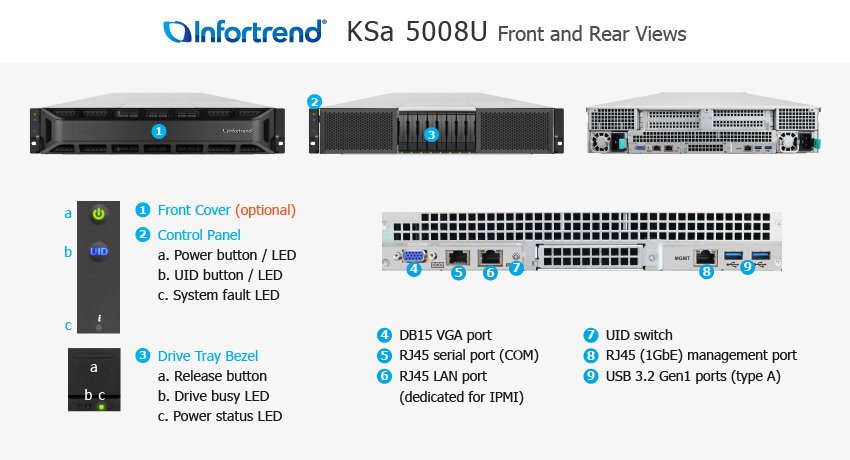

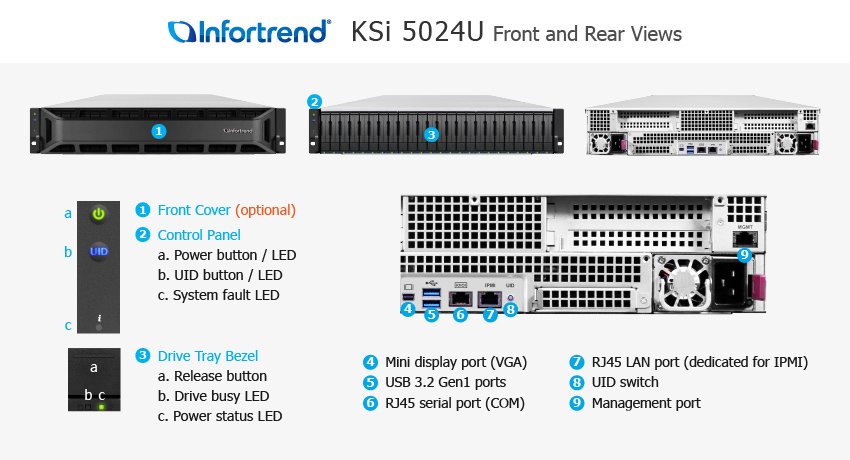

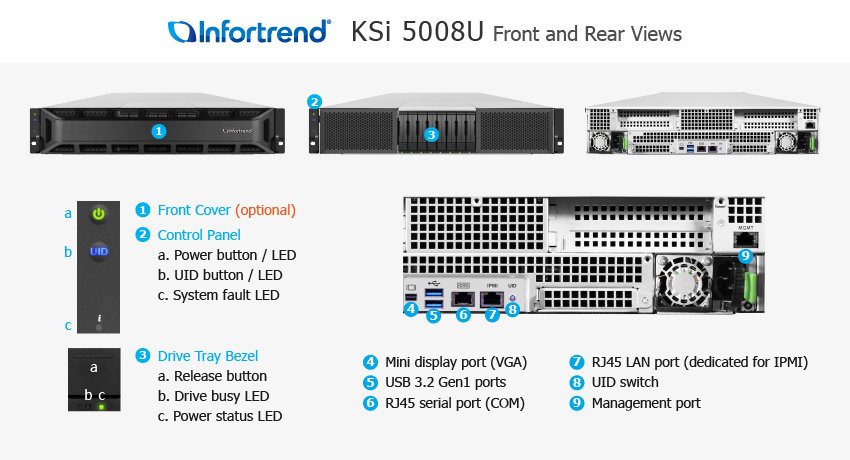

KSa 5008U/5016U: - 1 x RJ45 dedicated BMC/IPMI LAN port - 1 x RJ45 1GbE management port - 1 x RJ45 serial port (COM) - 1 x DB15 VGA port - 2 x USB 3.2 Gen1 ports (Type A) KSi 5008U/5016U/5024U: - 1 x RJ45 dedicated BMC/IPMI LAN port - 1 x RJ45 1GbE management port - 1 x RJ45 serial port (COM) - 1 x Mini-DP port (supports VGA output) - 2 x USB 3.2 Gen1 ports (Type A) |
||||
| Safety Standards |
Safety: UL, BSMI, CB Electromagnetic compatibility: CE, BSMI, FCC |
||||
| Power Supply Unit |
Power supplies: redundant hot-plug - KSi 5008U: 2 x 2700W/3200W (80 PLUS Titanium) - KSi 5016U: 2700W x 2 (80 PLUS Titanium) - KSa 5008U/5016U with 160-core CPU: 2 x 3200W (80 PLUS Titanium) - KSa 5008U/5016U with CPU less than 160 cores: 2700W x 2 (80 PLUS Titanium) - KSi 5024U: 1600W x 2 (80 PLUS Titanium) AC Input: - KSi 5008U: 100–127VAC @18A, 200–240VAC @16A - KSa 5008U/5016U, KSi 5008U/5016U: 200–240VAC @16–13.5A - KSi 5024U: 100–127VAC @12A, 200–240VAC @10A Frequency: 50–60 Hz Note: Please use 200–240VAC for all KS models. |
||||
| Environmental |
Temperature (without GPU):
- Operating: 10°C to 35°C - Non-operating: -40°C to 60°C Altitude: - Operating: Sea level to 3,660 m (12,000 ft) - Non-operating: Sea level to 12,192 m (40,000 ft) Relative humidity: 5% to 95% non-condensing, operating or non-operating |
||||
| Service and Support |
Standard service:
3-year limited hardware warranty
and 8x5 phone, web, and email support
(batteries are covered under warranty
for 2 years). Warranty extension: standard service can be extended up to 5 years. Service upgrade options: - Upgrade: replacement part dispatch on the next business day. - Advanced service: phone, web, and email support + onsite diagnostics on the next business day. - Premium service: phone, web, and email support + onsite diagnostics in 4 hours. Technical support: installation/maintenance guide, software/firmware download, troubleshooting and support tickets. Product services: product registration, licensing service, product repair, and order status. Note: Options may vary by region. |
||||
| Dimensions (W x H x D) |
Without chassis ears and protrusions KSa 5008U/5016U, KSi 5008U/5016U: 449 x 88 x 922 mm KSi 5024U: 449 x 88 x 852 mm |
||||
| Package Dimensions (W x H x D) |
KSa 5008U/5016U,
KSi 5008U/5016U:
596 x 262 x 1188 mm KSi 5024U: 596 x 262 x 1118 mm |
||||
| Weight (without SSDs) |
KSa 5008U:
50.88 lbs (23.08 kg) KSi 5008U: 52.03 lbs (23.60 kg) KSi 5016U: 48.37 lbs (21.94 kg) KSi 5024U: 44.89 lbs (20.36 kg) |
||||
| Package Weight (without SSDs) |
KSa 5008U:
73.02 lbs (33.12 kg) KSi 5008U: 71.12 lbs (32.26 kg) KSi 5016U: 72.53 lbs (32.90 kg) KSi 5024U: 68.92 lbs (31.26 kg) |
||||
KSa 5008U
(2U 8-bay)
Filter by ticking your preference
Qty
KSa 5008U 2U/8bay U.2 NVMe Enterprise
Cloud bare metal system including 2x AMD
EPYC 9334, 2x PCIe slots, 1x OCP 3.0 slot,
4x FHFL GPU slots, 2x(PSU+ fan module),
8x drive trays and 1x rackmount kit.
Qty
KSa 5008U 2U/8bay U.2 NVMe Enterprise
Cloud bare metal system including 2x AMD
EPYC 9334, 2x PCIe slots, 1x OCP 3.0 slot,
4x FHFL GPU slots, 16x16GB memory,
2x(PSU+ fan module), 8x drive trays
and 1x rackmount kit.
Qty
KSa 5008U 2U/8bay U.2 NVMe Enterprise
Cloud bare metal system including 2x AMD
EPYC 9334, 2x PCIe slots, 1x OCP 3.0 slot,
4x FHFL GPU slots, 16x64GB memory,
2x(PSU+ fan module), 8x drive trays
and 1x rackmount kit.
Qty
KSa 5008U 2U/8bay U.2 NVMe Enterprise
Cloud bare metal system including 2x AMD
EPYC 9334, 2x PCIe slots, 1x OCP 3.0 slot,
4x FHFL GPU slots, 12x16GB memory,
2x(PSU+ fan module), 8x drive trays
and 1x rackmount kit.
Qty
KSa 5008U 2U/8bay U.2 NVMe Enterprise
Cloud bare metal system including 2x AMD
EPYC 9334, 2x PCIe slots, 1x OCP 3.0 slot,
4x FHFL GPU slots, 24x64GB memory,
2x(PSU+ fan module), 8x drive trays
and 1x rackmount kit.
Qty
KSa 5008U 2U/8bay U.2 NVMe Enterprise
Cloud standalone system including 2x AMD
EPYC 9334, 2x PCIe slots, 1x OCP 3.0 slot,
4x FHFL GPU slots, 2x(PSU+ fan module),
8x drive trays and 1x rackmount kit.
Qty
KSa 5008U 2U/8bay U.2 NVMe Enterprise
Cloud standalone system including 2x AMD
EPYC 9334, 2x PCIe slots, 1x OCP 3.0 slot,
4x FHFL GPU slots, 16x16GB memory,
2x(PSU+ fan module), 8x drive trays
and 1x rackmount kit.
Qty
KSa 5008U 2U/8bay U.2 NVMe Enterprise
Cloud standalone system including 2x AMD
EPYC 9334, 2x PCIe slots, 1x OCP 3.0 slot,
4x FHFL GPU slots, 24x64GB memory,
2x(PSU+ fan module), 8x drive trays
and 1x rackmount kit.
Select your Network Adapter preference.
Select your HDD/SSD preference.
Select your Software License preference.
Select your Service & Warranty preference.
Select your Cable/SFP Module preference.
Select your Other Accessories preference.
