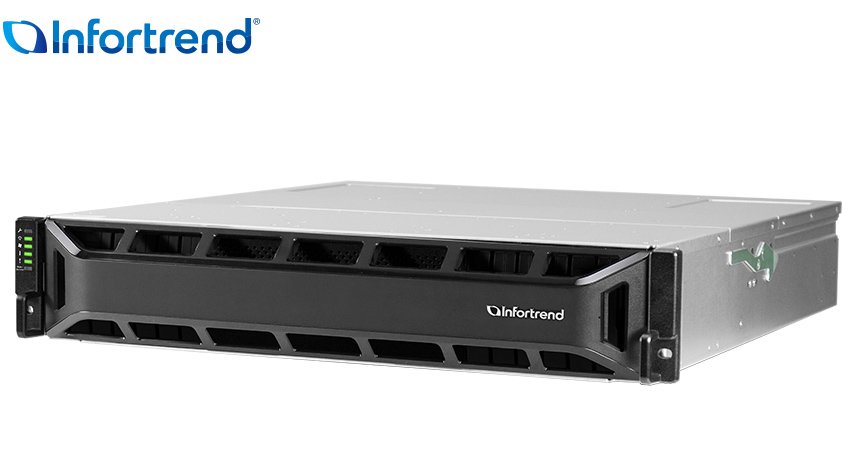

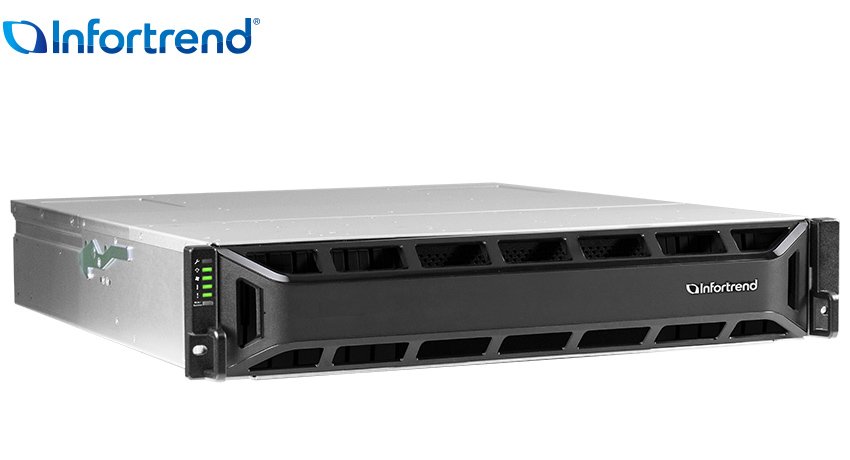

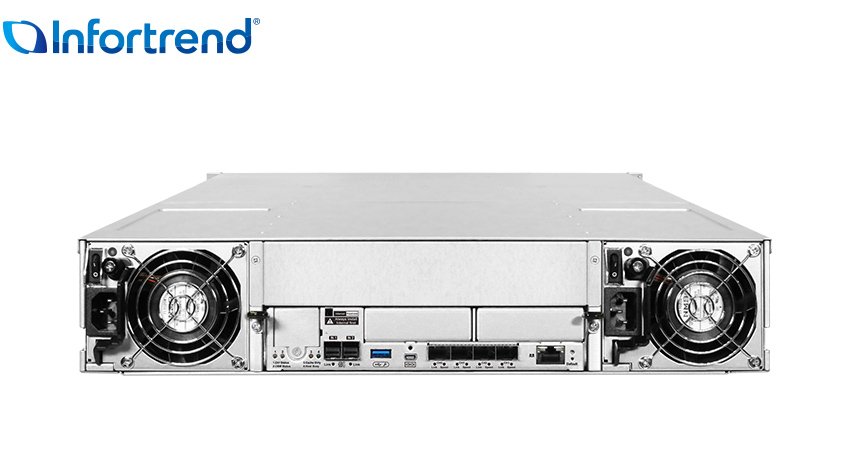

EonStor CS 4000U
High Performance Hybrid flash U.2 NVMe Scale-out NAS
Hybrid flash CS 4014U offers exceptionally high performance for high throughput and low latency workloads in such applications as M&E, HPC, Big Data, etc. Each node of CS 4014U can be installed with 14 U.2 SSDs, and a 3-node cluster can reach 18GB/s throughput. It provides complete data protection, high availability and real-time SSD monitoring.
| Model | CS 4014U | ||||
|---|---|---|---|---|---|
| Form Factor | 2U 14-bay | ||||
| Number of Nodes | 1 to 144 | ||||
| Cache Memory (per Node) | Default DDR4 64GB, up to 256GB | ||||
| Front-end Network (per Node) |
10GbE (SFP+) x 2 10GbE (SFP+) x 4 25GbE (SFP28) x 2 25GbE (SFP28) x 4 |
||||
| Internal Network (per Node) |
10GbE (SFP+) x 2 25GbE (SFP28) x 2 25GbE (SFP28) x 4 |
||||
| Network Type Combinations |
Front-end (10GbE x 2) + Internal (10GbE x 2) Front-end (10GbE x 4) + Internal (25GbE x 2) Front-end (25GbE x 2) + Internal (25GbE x 2) Front-end (25GbE x 4) + Internal (25GbE x 4) Front-end (10GbE x 4 + 25GbE x 2) + Internal (25GbE x 2) Front-end (10GbE x 4 + 25GbE x 4) + Internal (25GbE x 4) |
||||
| Supported Drives |
- 2.5” U.2 NVMe SSD (must be purchased from Infortrend) | ||||
| Max. Drive Number |
89 (per node, varies by model) |
||||
| Data Protection |
Disk protection: RAID 5, RAID 6 Node protection: Erasure code (2+1 or 4+1 or 4+2 or 8+1 or 8+2) or Replica (x2 or x3) Cluster protection: Rsync |
||||
| Data Services |
Default software features include: - SSD cache: 1 SAS/SATA SSD per node as cache - DNS Load Balancing: round robin Optional software features require additional license: - Data lock - Auto storage tiering: 2 tiers per system (SSD tier and HDD tier) - Advanced SSD cache: 2, 4, 6, or 8 SAS/SATA SSDs per node as cache - Advanced DNS Load Balancing: connection number, network throughput, CPU usage |
||||
| Supported OS |
Windows Server 2016, Windows Server 2012 R2, CentOS Note: For supported OS versions, please refer to the EonStor CS Compatibility Guide. |
||||
| Supported Protocols |
- CIFS/SMB (version 2.0/3.0), NFS (version 3), FTP/FXP (vsftp 2.3.4) |
||||
| Management |
Web-based EonOne management software User account management Quota management ACL control Microsoft Active Directory (AD), Linux LDAP and NIS authentication Storage Resource Management to analyze history records of resource usage |
||||
| Notification |
Email, SNMP traps |
||||
| Expansion Enclosures (JBODs) |
- JB 3025B, JB 3016, JB 3060L |
||||
| Availability and Reliability |
SMB Multichannel, Self-healing, Backup Service. |
||||
| Safety Standards |
Safety: UL, BSMI, CB Electromagnetic compatibility: CE, BSMI, FCC |
||||
| Green Design |
80 PLUS-certified power supplies delivering more than 80% energy efficiency Intelligent multi-level drive spin-down |
||||
| Power Supply Unit |
Power supplies: redundant and hot-swappable 530W x 2 (80 PLUS Bronze) AC voltage: 100VAC @10A to 240VAC @5A Frequency: 50-60 Hz |
||||
| Environmental |
Temperature: - Operating: 0°C to 40°C - Non-operating: -40°C to 60°C Altitude: - Operating: Sea level to 3,660 m (12,000 ft) - Non-operating: Sea level to 12,192 m (40,000 ft) Relative humidity: 5% to 95% non-condensing, operating or non-operating |
||||
| Service and Support |
Standard service: 3-year limited hardware warranty and 8x5 phone, web, and email support (batteries are covered under warranty for 2 years). Warranty extension: standard service can be extended up to 5 years. Service upgrade options: the following service can be upgraded to 5 years Upgrade: replacement part dispatch on the next business day. Advanced service: phone, web, and email support + onsite diagnostics on the next business day.. Premium service: phone, web, and email support + onsite diagnostics in 4 hours. Technical support: installation/maintenance guide, software/firmware download, troubleshooting and support tickets. Product services: product registration, licensing service, product repair, and order status. Note: Options may vary by region. For more details, please contact our sales representatives. |
||||
| Dimensions (W x H x D) |
449 x 88 x 500 mm (without chassis ears and protrusions) |
||||
| Package Dimensions (W x H x D) |
780 x 340 x 588 mm |
||||

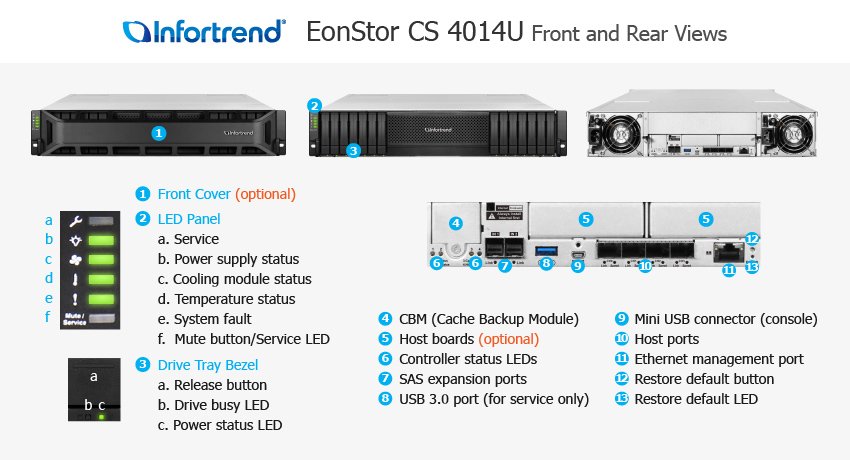

CS 4014U (2U 14-bay)
Filter by ticking your preference
Qty
EonStor CS 4000, 2U/14bay, scale-out NAS, single node subsystemincluding 1x12
core CPU, 4x10GbE(SFP+), 2x12Gb/s SAS EXP. Ports, 2x(PSU+FAN module),
1x(SuperCap.+flash module), 14xdrive trays and rackmount kit, scale out to 144 nodes
Qty
EonStor CS 4000, 2U/14bay, scale-out NAS, single node subsystem
including 1x12 core CPU, 64GB (4x16GB) memory, 4x10GbE(SFP+),
2x12Gb/s SAS EXP. Ports, 2x(PSU+FAN module), 1x(SuperCap.+flash module),
14xdrive trays and rack mount kit, scale out to 144 nodes, PCIe Gen4, 7.68TB, DWPD=1, with bundle key
Qty
EonStor CS 4000, 2U/14bay, scale-out NAS, single node subsystem including
1x12 core CPU, 128GB (4x32GB) memory, 4x10GbE(SFP+), 2x12Gb/s SAS EXP.
Ports, 2x(PSU+FAN module), 1x(SuperCap.+flash module), 14xdrive trays and rack mount kit,
scale out to 144 nodes, PCIe Gen4, 7.68TB, DWPD=1, with bundle key
Qty
EonStor CS 4000, 2U/14bay, scale-out NAS, single node subsystem
including 1x12 core CPU, 256GB (4x64GB) memory, 4x10GbE(SFP+),
2x12Gb/s SAS EXP. Ports, 2x(PSU+FAN module), 1x(SuperCap.+flash module),
14xdrive trays and rack mount kit,
scale out to 144 nodes, PCIe Gen4, 7.68TB, DWPD=1, with bundle key
Qty
EonStor host board with 2 x 25Gb/s Ethernet ports (SFP28), type 2
Qty
EonStor host board with 4 x 25Gb/s Ethernet ports (SFP28), type 2
Qty
U.2 NVMe SSD, PCIe Gen4, 1.92TB, DWPD=1 for G model
Qty
U.2 NVMe SSD, PCIe Gen4, 15.36TB, DWPD=1 for G model
Qty
U.2 NVMe SSD, PCIe Gen4, 3.84TB, DWPD=1 for G model
Qty
U.2 NVMe SSD, PCIe Gen4, 7.68TB, DWPD=1 for G model
Qty
EonStor CS Advanced DNS Load Balance License for G model (single node)
Qty
EonStor CS Data Lock License for G model (single node)
Qty
EonStor CS Advanced SSD Cache License for G model (single node)
Qty
EonStor CS Automated Tiering License for G model (single node)
Qty
3U/16bay single upgradable to redundant controller expansion enclosure
including 2x 12Gb SAS port, 2x(PSU+FAN module), 16xGS drive trays,
1x 12G to 12G SAS cable for storage or
expansion enclosure with 12G interface and 1xRackmount kit
Qty
2U/25bay Single controller expansion enclosure including
4x 12Gb SAS ports, 2x(PSU+FAN module), 25xdrive trays,
1x 12G to 12G SAS cable for storage or expansion
enclosure with 12G interface and 1xRackmount kit
Qty
4U/60bay Single controller expansion enclosure by one drawer
including 3x 12Gb SAS ports, 2x(PSU+FAN Module), 60xdrive trays, 1x 12G to 12G SAS
cable for storage or expansion enclosure with 12G interface and 1xRackmount kit
Qty
1 year extended warranty for storage subsystem High End 2U 14-bay Generic models
Qty
2 year extended warranty for storage subsystem High End 2U 14-bay Generic models
Qty
Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 1 Meter
Qty
Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 5 Meter
Qty
Optical FC cable, LC-LC, MM-50/125, Duplex, LSZH, O.D.=1.8mm*2, 10 Meter
Qty
RS232 for RAID subsystems, min. USB to DB-9; maintenance-free during
controller failover/failback
Qty
DAC cable Ethernet 25G passive copper cable, SFP28, 1m
Qty
DAC cable Ethernet 25G passive copper cable, SFP28, 2m
Qty
strong>DAC cable Ethernet 40G passive copper cable, QSFP, 1m
Qty
strong>DAC cable Ethernet 40G passive copper cable, QSFP, 2m
Qty
strong>DAC cable Ethernet 40G passive copper cable, QSFP, 3m
Qty
SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 50 Centimeters
Qty
SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 120 Centimeters
Qty
SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 260 Centimeters
Qty
10GBASE-SR SFP+ Transceiver, LC, multi-mode
Qty
10GBASE-T SFP+ to RJ-45 copper transceiver module
Qty
25GbE SFP28 optical transceiver, LC, wave-length 850nm, multi-mode
Qty
Hisense 25GbE SFP28 optical transceiver, LC, wave-length 850nm, multi-mode
Qty
Controller module w/256GB DDR-IV & 1x (Super capacitor+Flash module), CS 4014UG subsystem
Qty
Slide rail assembly, 23"~37" rack depth
Qty
Super Capacitor (GS/GSa/GSe 3000/4000, GSc 3000, DS 4000U series and CS family)
Qty
Super capacitor and charger board for GS 3000 Gen2, GS 4000 Gen2,CS 2000, CS 3000 and CS 4000
Qty
SFF drive tray for U.2 NVMe SSD
Qty
64GB DDR-IV ECC DIMM
Qty
16GB DDR-IV ECC DIMM
Qty
32GB DDR-IV ECC DIMM
Qty
530W Power supply module
