EonStor DS 4000 Gen2

High Performance Enterprise SAN Storage Solution

EonStor DS 4000 is a high availability SAN storage series for the most demanding enterprise applications. With outstanding data transmission performance, DS 4000 can handle massive data I/O even under high workloads. The series also provides flexibility with various protocols and dual host boards.

Infortrend KSa 5016U Enterprise Cloud Server

Infortrend KSa 5008U Enterprise Cloud Server

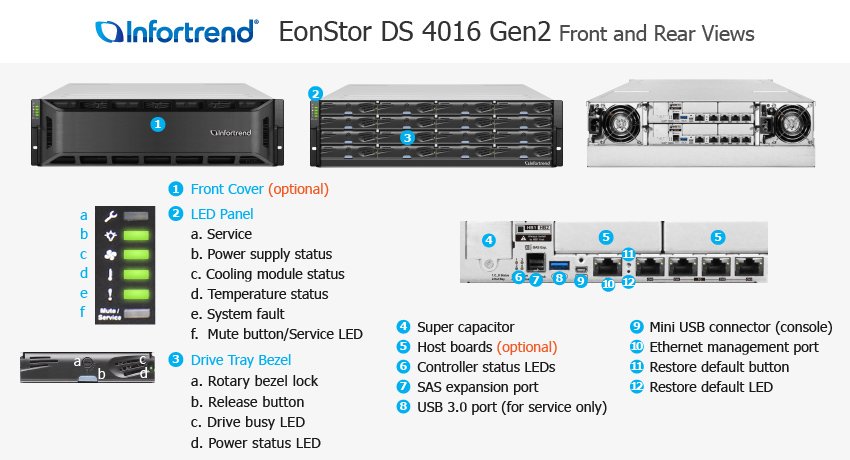

Model	DS 4016 Gen2	DS 4024 Gen2

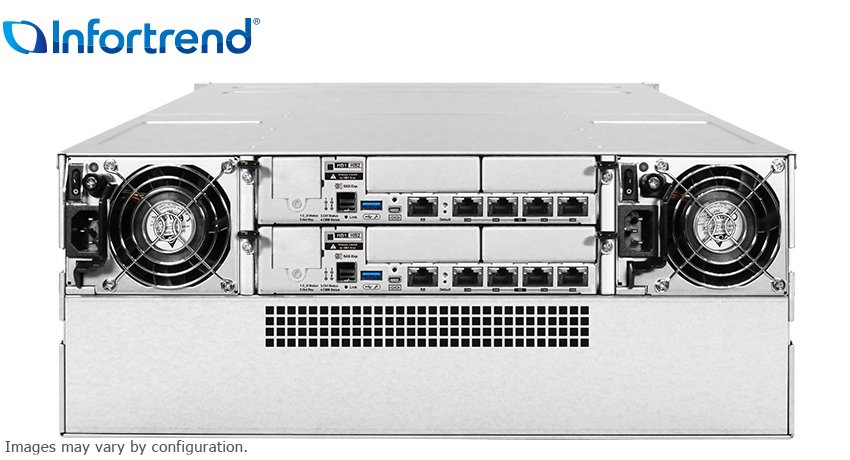

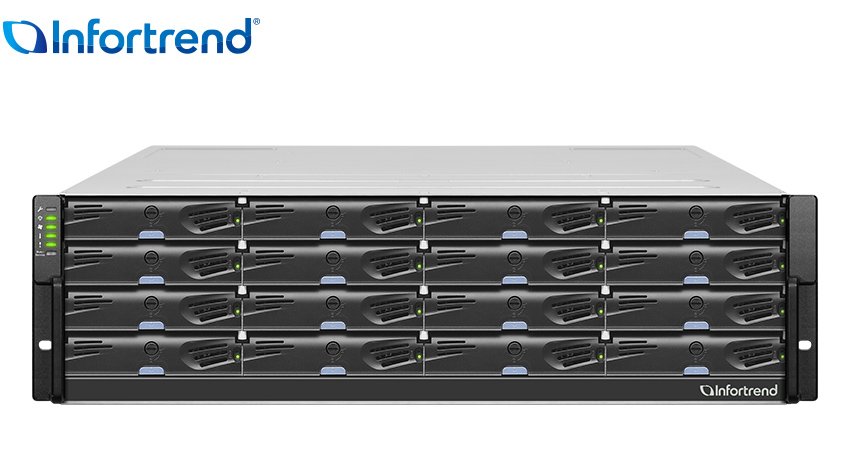

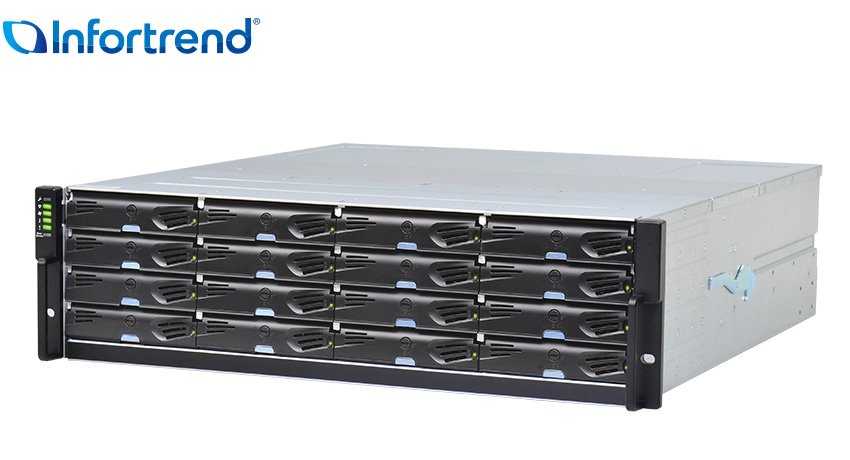

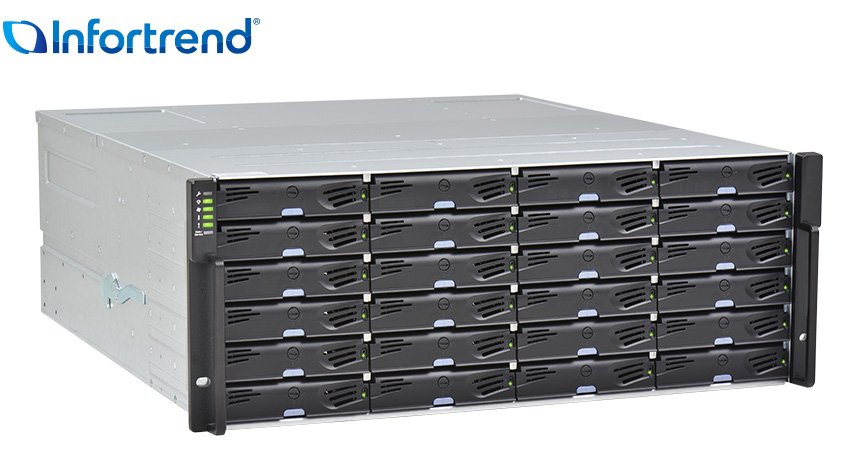

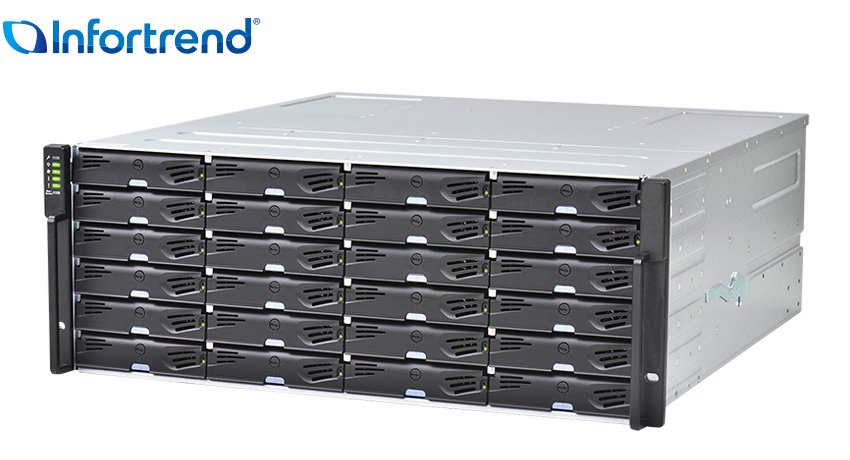

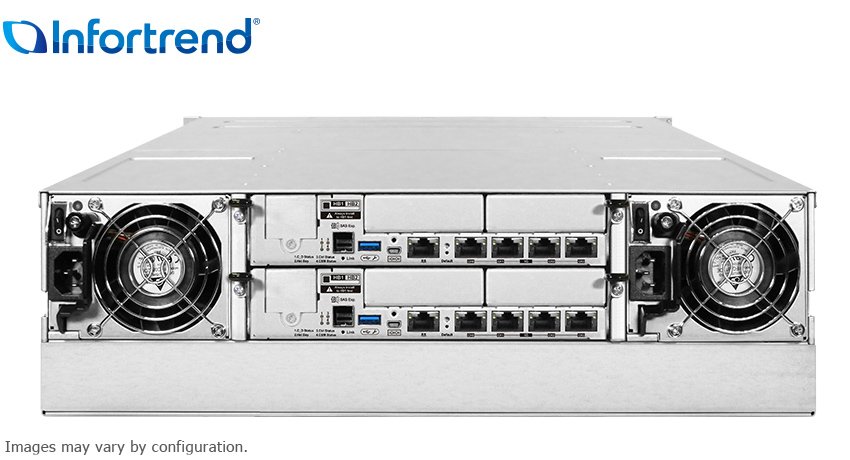

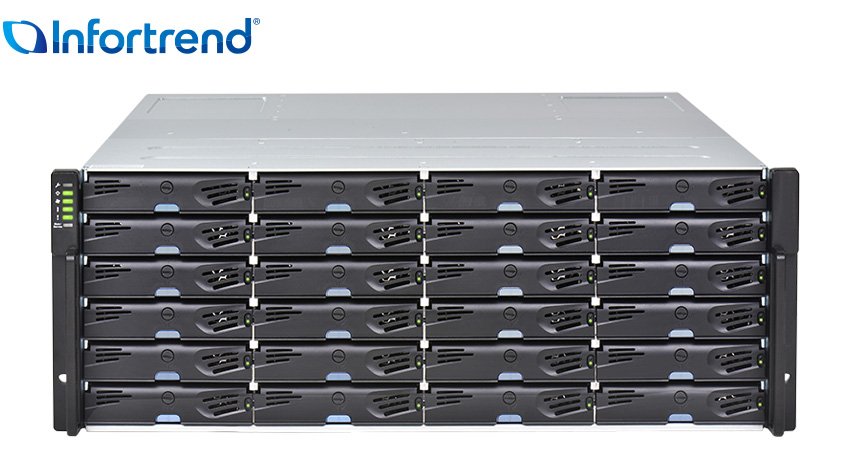

Form Factor	3U 16-bay	4U 24-bay
Controller	Single, dual redundant, or single upgradable to dual redundant
Cache Backup Technology	Super capacitor + flash module (option for single controller model)
Cache Memory	DS 4000 Gen2 single controller: Default DDR4 4GB, up to 64GB DS 4000 Gen2 dual redundant controllers, DS 4000SU: Default DDR4 8GB, up to 128GB DS 4000RU: Default DDR4 8GB, up to 256GB
Host Ports	Onboard host ports: - DS 4000 Gen2: 1GbE (RJ-45) x 8 - DS 4000SU/RU: 1GbE (RJ-45) x 4 Host board options: - 16Gb/s FC x 4 - 32Gb/s FC x 2 - 32Gb/s FC x 4 - 1GbE (RJ-45) x 4 - 10GbE (SFP+) x 2 - 25GbE (SFP28) x 2 - 12Gb/s SAS x 2 Note: It is strongly recommended that you refer to Related Information Host Board and Memory Guide above for complete information, including supported combinations and important notes, before purchasing any host board for your model.
Supported Drives	2.5" SAS SSD 2.5" 12Gb/s SAS 10,000 RPM HDD 3.5" 12Gb/s NL-SAS 7,200 RPM HDD 2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD (for single-controller models only) Note: For the latest compatibility details, please refer to the EonStor DS Compatibility Guide.
Drive Advanced Features	S.M.A.R.T. support Automatic bad-sector reassignment Dedicated bandwidth to each connected drive
Max. Drive Number	448 (via expansion enclosures)
RAID Options	RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 30, RAID 50, RAID 60
Efficiency	Offline compression, offline deduplication
Data Services	Default software features include: - Thin provisioning - Snapshot: 64 per source partition, 128 per system - Local replication (block level): 4 per source volume, 16 per system Optional software features require additional license - SSD cache - Automated storage tiering: 4 tiers per pool - Advanced snapshot: 256 per source partition, 4,096 per system - Advanced local replication (block level): 8 per source volume, 256 per system - Advanced remote replication (block level): 8 per source volume, 64 per system
Supported OS	Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Sun Solaris macOS X VMware Note: For supported OS versions, please refer to the EonStor DS Compatibility Guide.
Supported Protocols	Block level: FC, iSCSI, SAS
Management	Web-based SANWatch management software Embedded RAIDWatch Terminal via RS-232C Telnet and SSH Command-line interface (CLI)
Notification	Email, SNMP traps
Expansion Enclosures (JBODs)	JB 3012, JB 3016, JB 3024B, JB 3060L, JB 3090
Availability and Reliability	Redundant, hot-swappable hardware modules Device mapper Trunk group Cache safe technology
Safety Standards	Safety: UL/cUL, BSMI, CB Electromagnetic compatibility: CE, BSMI, FCC
Green Design	80 PLUS-certified power supplies delivering more than 80% energy efficiency Intelligent multi-level drive spin-down
Power Supply Unit (Global)	Power supplies: redundant and hot-swappable - DS 4000 Gen2: 460W x 2 (80 PLUS Bronze) - DS 4000SU/RU: 530W x 2 (80 PLUS Bronze) AC voltage: 100VAC @10A, 240VAC @5A Frequency: 50-60 Hz
Power Supply Unit (EU)	Power supplies: redundant and hot-swappable 800W x 2 (80 PLUS Titanium) AC voltage: 100-127VAC @10A, 200-240VAC @5A Frequency: 50-60 Hz
Environmental	Temperature: - Operating: 0°C to 40°C - Non-operating: -40°C to 60°C Altitude: - Operating: Sea level to 3,660 m (12,000 ft)) - Non-operating: Sea level to 12,192 m (40,000 ft) Relative humidity: 5% to 95% non-condensing, operating or non-operating
Service and Support	Standard service: 3-year limited hardware warranty and 8x5 phone, web, and email support (batteries are covered under warranty for 2 years). Warranty extension: standard service can be extended up to 5 years. Service upgrade options: the following service can be upgraded to 5 years Upgrade: replacement part dispatch on the next business day. Advanced service: phone, web, and email support + onsite diagnostics on the next business day.. Premium service: phone, web, and email support + onsite diagnostics in 4 hours. Technical support: installation/maintenance guide, software/firmware download, troubleshooting and support tickets. Product services: product registration, licensing service, product repair, and order status. Note: Options may vary by region. For more details, please contact our sales representatives.
Dimensions (W x H x D)	Without chassis ears and protrusions 3U 16-bay: 449 x 130 x 500 mm 4U 24-bay: 449 x 174.4 x 500 mm
Package Dimensions (W x H x D)	3U 16-bay: 780 x 423 x 588 mm 4U 24-bay: 780 x 465 x 588 mm
Weight (without HDDs)	3U 16-bay: 47.75 lbs (21.66 kg) 4U 24-bay: 60.49 lbs (27.44 kg)
