EonStor DS 4000U
High Performance Hybrid Flash U.2 NVMe SSD SAN Storage
EonStor DS 4000U delivers extremely high performance with U.2 NVMe SSD. Each appliance can hold 24 U.2 SSDs, providing an extremely high IOPS at 1000K and a throughput at 11GB/s, which allows the system to quickly respond to multiple I/O requests of virtual machines, HPC servers, databases, etc.
| Model | DS 4024U | ||||
|---|---|---|---|---|---|
| Form Factor | 2U 24-bay | ||||
| Controller | Single or dual redundant | ||||
| Cache Backup Technology | Super capacitor + flash module (option for single controller model) | ||||
| Cache Memory |
Default DDR4 8GB, up to 128GB | ||||
| Host Ports |
Onboard host ports: - 10GbE (SFP+) x 4 (for DS 4024URT) Host board options: - 16Gb/s FC x 4 - 32Gb/s FC x 2 - 32Gb/s FC x 4 - 10GbE (SFP+) x 2 - 25GbE (SFP28) x 2 - 12Gb/s SAS x 2 Note: It is strongly recommended that you refer to Related Information > Host Board and Memory Guide above for complete information,including supported combinations and important notes, before purchasing any host board for your model. |
||||
| Supported Drives |
2.5” U.2 NVMe SSD (must be purchased from Infortrend) |
||||
| Max. Drive Number |
448 (via expansion enclosures) |
||||
| Drive Advanced Features |
Disk protection: RAID 5, RAID 6 Cluster protection: Rsync |
||||
| Data Services (optional) |
S.M.A.R.T. support Automatic bad-sector reassignment Dedicated bandwidth to each connected drive |
||||
| RAID Options |
RAID 0, RAID 1, RAID 3, RAID 5/5F, RAID 6/6F, RAID 10, RAID 30, RAID 50, RAID 60 |
||||
| Data Services |
Default software features include: - Thin provisioning - Snapshot: 64 per source partition, 128 per system - Local replication (block level): 4 per source volume, 16 per system Optional software features require additional license - SSD cache - Automated storage tiering: 4 tiers per pool - Advanced snapshot: 256 per source partition, 4,096 per system - Advanced local replication (block level): 8 per source volume, 256 per system - Advanced remote replication (block level): 8 per source volume, 64 per system |
||||
| Supported OS |
Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Sun Solaris macOS X VMware Note: For supported OS versions, please refer to the EonStor DS Compatibility Guide. |
||||
| Supported Protocols |
Block level: FC, iSCSI, SAS |
||||
| Management |
Web-based SANWatch management software Embedded RAIDWatch Terminal via RS-232C Telnet and SSH Command-line interface (CLI) |
||||
| Notification |
Email, SNMP traps |
||||
| Expansion Enclosures (JBODs) |
JB 3012, JB 3016, JB 3024B, JB 3060L, JB 3090 |
||||
| Availability and Reliability |
Redundant, hot-swappable hardware modules Device mapper Trunk group Cache safe technology |
||||
| Safety Standards |
Safety: UL/cUL, BSMI, CB Electromagnetic compatibility: CE, BSMI, FCC |
||||
| Green Design |
80 PLUS-certified power supplies delivering more than 80% energy efficiency Intelligent multi-level drive spin-down |
||||
| Power Supply Unit (Global) |
Power supplies: redundant and hot-swappable 530W x 2 (80 PLUS Bronze) AC voltage: 100VAC @10A, 240VAC @5A Frequency: 50-60 Hz |
||||
| Power Supply Unit (EU) |
Power supplies: redundant and hot-swappable 800W x 2 (80 PLUS Titanium) AC voltage: 100-127VAC @10A, 200-240VAC @5A Frequency: 50-60 Hz |
||||
| Environmental |
Temperature: - Operating: 0°C to 40°C - Non-operating: -40°C to 60°C Altitude: - Operating: Sea level to 3,660 m (12,000 ft)) - Non-operating: Sea level to 12,192 m (40,000 ft) Relative humidity: 5% to 95% non-condensing, operating or non-operating |
||||
| Service and Support |
Standard service: 3-year limited hardware warranty and 8x5 phone, web, and email support (batteries are covered under warranty for 2 years). Warranty extension: standard service can be extended up to 5 years. Service upgrade options: the following service can be upgraded to 5 years Upgrade: replacement part dispatch on the next business day. Advanced service: phone, web, and email support + onsite diagnostics on the next business day.. Premium service: phone, web, and email support + onsite diagnostics in 4 hours. Technical support: installation/maintenance guide, software/firmware download, troubleshooting and support tickets. Product services: product registration, licensing service, product repair, and order status. Note: Options may vary by region. For more details, please contact our sales representatives. |
||||
| Dimensions (W x H x D) |
449 x 88 x 500 mm (without chassis ears and protrusions) |
||||
| Package Dimensions (W x H x D) |
780 x 338 x 588 mm |
||||

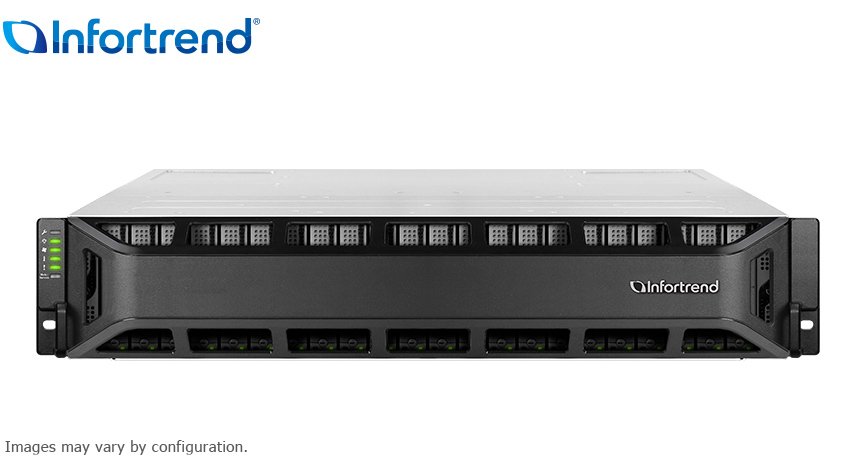

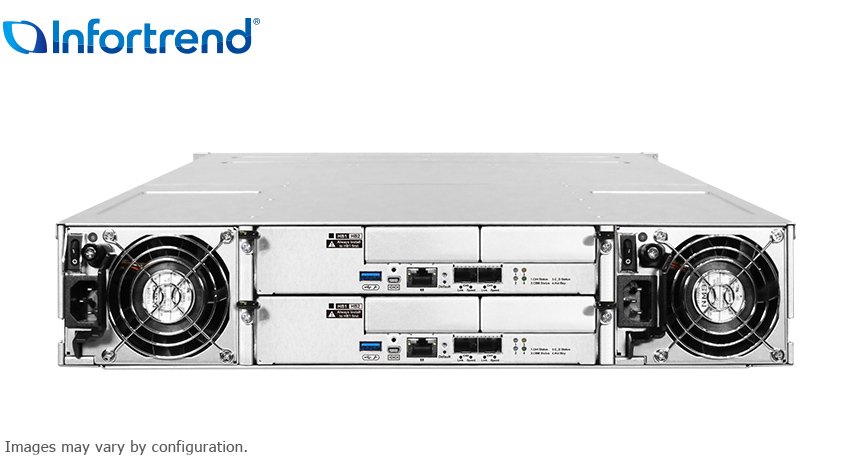

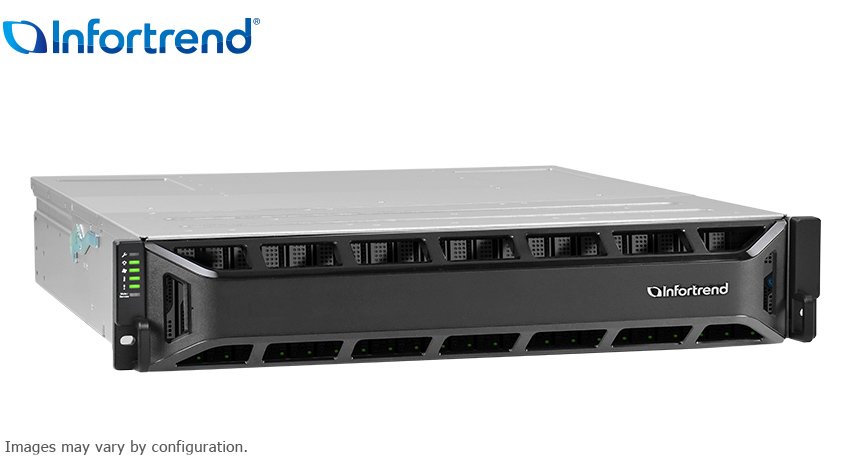

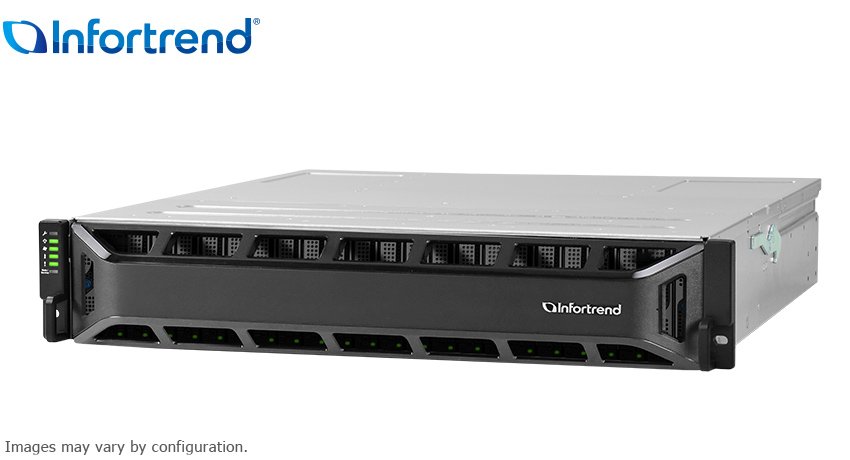

DS 4024U (2U 24-bay)
Filter by ticking your preference
Qty
EonStor DS4000 2U/24bay U.2 NVMe Hybrid-Flash storage array,
singlecontroller subsystem, 2x host board slot(s),
2x(PSU+ fanmodule), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS4000 2U/24bay U.2 NVMe All-Flash storage array, single controller
subsystem, 2x host board slot(s),
1x4GB memory, 2x(PSU+ fan module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS4000 2U/24bay U.2 NVMe All-Flash storage array, single controller
subsystem, 2x host board slot(s),
2x4GB memory, 2x(PSU+ fan module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS4000 2U/24bay U.2 NVMe All-Flash storage array, single controller
subsystem, 2x host board slot(s),
2x8GB memory, 2x(PSU+ fan module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS4000 2U/24bay U.2 NVMe All-Flash storage array, single controller
subsystem, 2x host board slot(s),
2x16GB memory, 2x(PSU+ fan module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS4000 2U/24bay U.2 NVMe All-Flash storage array, single
controller subsystem, 2x host board slot(s), 2x32GB memory,
2x(PSU+ fan module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS4000T2U/24bay U.2 NVMe Hybrid-Flash storage array, singlecontroller
subsystem, 2x host board slot(s),
2x10GbE ports (SFP+), 2x(PSU+ fan module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS4000T2U/24bay U.2 NVMe All-Flash storage array,
single controller subsystem, 2x host board slot(s), 2x10GbE ports (SFP+), 1x4GB memory,
2x(PSU+ fan module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS4000T 2U/24bay U.2 NVMe All-Flash storage array, single
controller subsystem, 2x host board slot(s), 2x10GbE ports (SFP+), 2x4GB
memory, 2x(PSU+ fan module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS4000T 2U/24bay U.2 NVMe All-Flash storage array, single controller
subsystem, 2x host board slot(s), 2x10GbE ports (SFP+),
2x8GB memory, 2x(PSU+ fan module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS4000T 2U/24bay U.2 NVMe All-Flash storage array, single controller
subsystem, 2x host board slot(s), 2x10GbE ports (SFP+), 2x16GB memory, 2x(PSU+ fan module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS4000T 2U/24bay U.2 NVMe All-Flash storage array, single controller
subsystem, 2x host board slot(s), 2x10GbE ports (SFP+),
2x32GB memory, 2x(PSU+ fan module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS 4000 2U/24bay U.2 NVMe All-Flash storage array, dualredundant
controller subsystem including 4x host board slots, 2x(PSU+fan module),
2x(SuperCap.+ flash module), 24xdrive trays and 1xrackmount kit.
Qty
EonStor DS 4000 2U/24bay U.2 NVMe All-Flash storage array, dual
redundant controller subsystem including 4x host board slots, 2x4GB memory, 2x(PSU+ fan module),
2x(SuperCap.+ flash module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS 4000 2U/24bay U.2 NVMe All-Flash storage array, dual
redundant controller subsystem including 4x host board slots, 4x4GB memory, 2x(PSU+ fan module),
2x(SuperCap.+ flash module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS 4000 2U/24bay U.2 NVMe All-Flash storage array, dual redundant controller
subsystem including 4x host board slots, 4x8GB memory,
2x(PSU+ fan module), 2x(SuperCap.+ flash module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS 4000 2U/24bay U.2 NVMe All-Flash storage array, dual redundant controller
subsystem including 4x host board slots, 4x16GB memory,
2x(PSU+ fan module), 2x(SuperCap.+ flash module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS 4000 2U/24bay U.2 NVMe All-Flash storage array, dual redundant controller
subsystem including 4x host board slots, 4x32GB memory,
2x(PSU+ fan module), 2x(SuperCap.+ flash module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS 4000T 2U/24bay U.2 NVMe All-Flash storage array, dualredundant controller
subsystem including 4x10GbE ports (SFP+),4x host board slots,
2x(PSU+ fan module), 2x(SuperCap.+ flash module),24xdrive trays and 1x rackmount kit.
Qty
EonStor DS 4000T 2U/24bay U.2 NVMe All-Flash storage array, dual redundant controller
subsystem including 4x10GbE ports (SFP+), 4x host board slots, 2x4GB memory,
2x(PSU+ fan module), 2x(SuperCap.+ flash module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS 4000T 2U/24bay U.2 NVMe All-Flash storage array, dual redundant controller
subsystem including 4x10GbE ports (SFP+), 4x host board slots, 4x4GB memory,
2x(PSU+ fan module), 2x(SuperCap.+ flash module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS 4000T 2U/24bay U.2 NVMe All-Flash storage array, dual
redundant controller subsystem including 4x10GbE ports (SFP+),
4x host board slots, 4x8GB memory, 2x(PSU+ fan module),
2x(SuperCap.+ flash module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS 4000T 2U/24bay U.2 NVMe All-Flash storage array, dual
redundant controller subsystem including 4x10GbE ports (SFP+),
4x host board slots, 4x16GB memory, 2x(PSU+ fan module),
2x(SuperCap.+ flash module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor DS 4000T 2U/24bay U.2 NVMe All-Flash storage array, dual
redundant controller subsystem including 4x10GbE ports (SFP+), 4x host board slots, 4x32GB memory, 2x(PSU+ fan module),
2x(SuperCap.+ flash module), 24xdrive trays and 1x rackmount kit.
Qty
EonStor host board with 2 x 10Gb/s Ethernet ports (SFP+), type2
Qty
EonStor host board with 2 x 25Gb/s Ethernet ports (SFP28), type 2
Qty
EonStor host board with 4 x 16Gb/s FC ports, type 2
Qty
EonStor host board with 2 x 32Gb/s FC ports, type 2
Qty
EonStor host board with 4 x 32Gb/s FC ports, type 2
Qty
Host connection only EonStor host board with 2 x 12Gb/s SAS ports, type 2
Qty
Expansion Connection Only EonStor expansion board for expansion enclosure with 2 x 12Gb/s SAS ports, type 2
Qty
For 4024UG U.2 NVMe SSD, PCIe Gen4, 1.92TB, DWPD=1 for G model
Qty
For 4024UR U.2 NVMe SSD, PCIe Gen4, 1.92TB, DWPD=1 for R model
Qty
For 4024UG U.2 NVMe SSD, PCIe Gen4, 15.36TB, DWPD=1 for G model
Qty
For 4024UR U.2 NVMe SSD, PCIe Gen4, 15.36TB, DWPD=1 for R model
Qty
For 4024UG U.2 NVMe SSD, PCIe Gen4, 3.84TB, DWPD=1 for G model
Qty
For 4024UR U.2 NVMe SSD, PCIe Gen4, 3.84TB, DWPD=1 for R model
Qty
For 4024UG U.2 NVMe SSD, PCIe Gen4, 7.68TB, DWPD=1 for G model
Qty
For 4024UR U.2 NVMe SSD, PCIe Gen4, 7.68TB, DWPD=1 for R model
Qty
EonStor DS Advanced Local Replication License (Snapshot and Volume Copy/Mirror)
Qty
EonStor DS Remote Replication License
Qty
EonStor DS Automated Storage Tiering License(2 tiers)
Qty
EonStor DS Advanced Automated Storage Tiering License(4 tiers)
Qty
2U/12bay dual redundant controller expansion enclosure including 4x 12Gb
SAS ports, 2x(PSU+FAN module), 12xGS drive trays, 2x 12G to 12G SAS cables
for storage or expansion enclosure with 12G interface and 1xRackmount kit
Qty
2U/12bay single upgradable to redundant controller expansion enclosure
including 2x 12Gb SAS port, 2x(PSU+FAN module), 12xGS drive trays, 1x 12G to 12G SAS cable for
storage or expansion enclosure with 12G interface and 1xRackmount kit
Qty
3U/16bay dual redundant controller expansion enclosure including 4x 12Gb
SAS ports, 2x(PSU+FAN module), 16xGS drive trays, 2x 12G to 12G SAS cables
for storage or expansion enclosure with 12G interface and 1xRackmount kit
Qty
3U/16bay single upgradable to redundant controller expansion enclosure
including 2x 12Gb SAS port, 2x(PSU+FAN module), 16xGS drive trays, 1x 12G to 12G SAS cables for
storage or expansion enclosure with 12G interface and 1xRackmount kit
Qty
2U/12bay single upgradable to redundant controller expansion enclosure
including 2x 12Gb SAS port, 2x(PSU+FAN module), 12xGS drive trays, 1x 12G to 12G SAS cable for
storage or expansion enclosure with 12G interface and 1xRackmount kit
Qty
2U/24bay dual redundant controller expansion enclosure including 4x 12Gb SAS ports,
2x(PSU+FAN module), 24xdrive trays, 2x
12G to 12G SAS cables for 12G storage or expansion enclosure and 1xRackmount kit
Qty
2U/24bay single controller expansion enclosure including 2x 12Gb
SAS port, 2x(PSU+FAN module), 24xdrive trays, 1x 12G to 12G SAS
cables for 12G storage or expansion enclosure and 1xRackmount kit
Qty
2U/25bay Dual redundant controller expansion enclosure including 8x 12Gb
SAS ports, 2x(PSU+FAN module), 25xdrive trays, 2x 12G to 12G SAS cables
for storage or expansion enclosure with 12G interface and 1xRackmount kit
Qty
2U/25bay Single controller expansion enclosure including 4x 12Gb SAS
ports, 2x(PSU+FAN module), 25xdrive trays, 1x 12G to 12G SAS cables for
storage or expansion enclosure with 12G interface and 1xRackmount kit
Qty
4U/60bay single controller expansion enclosure by one drawer including 3x 12Gb
SAS ports, 2x(PSU+FAN Module), 60xdrive trays and 1xRackmount kit
Qty
4U/60bay dual redundant controller expansion enclosure by one drawer including
6x 12Gb SAS ports, 2x(PSU+FAN Module), 60xdrive trays and 1xRackmount kit
Qty
4U/90bay Single controller expansion enclosure by one drawer including 4x
12Gb SAS ports, 2x(PSU+FAN Module), 1x 12G to 12G SAS cables for storage
or expansion enclosure with 12G interface, 4x fan module, 90x3.5"drive
trays and 1xRackmount kit (2.5" drive trays need to purchase additionally)
Qty
4U/90bay Dual redundant controller expansion enclosure by one drawer including
8x 12Gb SAS ports, 2x(PSU+FAN Module), 2x 12G to 12G SAS cables for storage or
expansion enclosure with 12G interface, 4x fan module, 90x3.5"drive
trays and 1xRackmount kit (2.5" drive trays need to purchase additionally)
Qty
1 year extended warranty for storage system Mid-Range
level 2U 24-bay Single/Redundant models
Qty
2 year extended warranty for storage system Mid-Range level 2U 24-bay Single/Redundant models
Qty
Optical FC cable, for FC 16G, FC 32G, Ethernet 10G, 1M
Qty
Optical FC cable, for FC 16G, FC 32G, Ethernet 10G, 5M
Qty
Optical FC cable, for FC 16G, FC 32G, Ethernet 10G, 10M
Qty
RS232 for RAID subsystems, min. USB to DB-9;
maintenance-free during controller failover/failback
Qty
MPO connector cable Optical FC cable, for Ethernet 25G, 100G and 200G, 2M
Qty
MPO connector cable Optical FC cable, for Ethernet 25G, 100G and 200G, 3M
Qty
MPO connector cable Optical FC cable, for Ethernet 25G, 100G and 200G, 5M
Qty
DAC cable Ethernet 25G passive copper cable, SFP28, 1m
Qty
DAC cable Ethernet 25G passive copper cable, SFP28, 2m
Qty
DAC cable Ethernet 40G passive copper cable, QSFP, 1m
Qty
DAC cable Ethernet 40G passive copper cable, QSFP, 2m
Qty
DAC cable Ethernet 40G passive copper cable, QSFP, 3m
Qty
SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 50 CM
Qty
SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 120 CM
Qty
SAS 12G external cable, Pull type, SFF-8644 to SFF-8644 (12G to 12G), 260 CM
Qty
10G BASE-SR SFP+ Transceiver, LC, multi-mode
Qty
10GBASE-T SFP+ to RJ-45 copper transceiver module
Qty
16Gb/s Fibre Channel SFP+ optical transceiver, LC, wave-length 850nm, multi-mode
Qty
Hisense 32G Fibre Channel SFP28 optical transceiver, LC, wave-length 850nm, multi-mode
Qty
Fibre Channel 8.5 / 4.25 / 2.125 GBd Small Form Pluggable Optical Transceiver, LC, wave-length 850nm, multi-mode
Qty
Controller module with 2x host board slots and 1x
(super capacitor + flash module), DS 4024UG NVMe all-flash subsystem
Qty
Controller module with 4GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UG NVMe all-flash subsystem
Qty
Controller module with 8GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UG NVMe all-flash subsystem
Qty
Controller module with 16GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UG NVMe all-flash subsystem
Qty
Controller module with 32GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UG NVMe all-flash subsystem
Qty
Controller module with 64GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UG NVMe all-flash subsystem
Qty
Controller module with 2x host board slots and
1x (super capacitor + flash module), DS 4024UGT NVMe all-flash subsystem
Qty
Controller module with 4GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UGT NVMe all-flash subsystem
Qty
Controller module with 8GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UGT NVMe all-flash subsystem
Qty
Controller module with 16GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UGT NVMe all-flash subsystem
Qty
Controller module with 32GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UGT NVMe all-flash subsystem
Qty
Controller module with 64GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UGT NVMe all-flash subsystem
Qty
Controller module with 2x host board slots and
1x (super capacitor + flash module), DS 4024U NVMe all-flash subsystem
Qty
Controller module with 4GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024U NVMe all-flash subsystem
Qty
Controller module with 8GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024U NVMe all-flash subsystem
Qty
Controller module with 16GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024U NVMe all-flash subsystem
Qty
Controller module with 32GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024U NVMe all-flash subsystem
Qty
Controller module with 64GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024U NVMe all-flash subsystem
Qty
Controller module with 2x host board slots and
1x (super capacitor + flash module), DS 4024UT NVMe all-flash subsystem
Qty
Controller module with 4GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UT NVMe all-flash subsystem
Qty
Controller module with 8GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UT NVMe all-flash subsystem
Qty
Controller module with 16GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UT NVMe all-flash subsystem
Qty
Controller module with 32GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UT NVMe all-flash subsystem
Qty
Controller module with 64GB DIMM memory, 2xhost board slots and
1x(super capacitor + flash module), DS 4024UT NVMe all-flash subsystem
Qty
Slide rail assembly, 23"~37" rack depth
Qty
Capacitor backup unit, Super capacitor
Qty
Super capacitor + Charger board
Qty
Front Cover for 2U subsystem
Qty
SFF drive tray for U.2 NVMe SSD
Qty
For 4024UR1/2 4GB DDR-IV ECC U-DIMM
Qty
For 4024UR1/2 8GB DDR-IV ECC U-DIMM
Qty
For 4024UR1/2 16GB DDR-IV ECC U-DIMM
Qty
For 4024UR1/2 32GB DDR-IV ECC U-DIMM
Qty
For 4024UR0 8GB DDR-IV ECC DIMM
Qty
For 4024UR0 16GB DDR-IV ECC DIMM
Qty
For 4024UR0 4GB DDR-IV ECC DIMM
Qty
For 4024UR0 32GB DDR-IV ECC DIMM
Qty
530W Power supply unit with fan module, 80 PLUS Bronze
Qty
530W Power supply unit with fan module, 80 PLUS Gold
