EonStor GSx 5000U
Ultra-High Performance All-Flash Parallel File Storage
EonStor GSx 5000U facilitates parallel file access, delivering the ultimate performance of 43GB/s read and 16.5GB/s write on a single appliance, and almost 10 times that performance when using 10 appliances. It is ideally suited for AI and HPC applications.
| Model | GSx 5024UE | ||||
|---|---|---|---|---|---|
| Form Factor | 2U 24-bay | ||||
| Controller | Dual redundant | ||||
| Cache Backup Technology | Super capacitor + flash module | ||||
| CPU |
Intel® Xeon® Scalable 12-core |
||||
| File System |
Infortrend Parallel File System |
||||
| Number of Appliances |
1 to 10 |
||||
| Cache Memory |
Default DDR5 128GB, up to 1024GB | ||||
| Host Board Options |
32Gb/s FC x 4 25GbE (SFP28) x 2, RDMA 25GbE (SFP28) x 4, RDMA 100GbE (QSFP28) x 1, RDMA 100GbE (QSFP56) x 2, RDMA 200GbE (QSFP56) x 1, RDMA Note: It is strongly recommended that you refer to Related Information Host Board and Memory Guide above for complete information, including supported combinations and important notes, before purchasing any host board for your model. |
||||
| Supported Drives |
2.5” U.2 NVMe SSD (must be purchased from Infortrend) |
||||
| Max. Drive Number |
Per appliance: 96 Per cluster: 960 |
||||
| Data Protection |
Disk protection: RAID 5, RAID 6 Cluster protection: Rsync |
||||
| Supported OS |
Linux, Windows |
||||
| Client Connections |
Leverages FC, iSCSI, iSER/RDMA |
||||
| Management |
Web-based EonOne management software User account management Group management Folder management - folder access control Quota management ACL control Microsoft Active Directory (AD), Linux LDAP and NIS authentication |
||||
| Notification |
Email, SNMP traps |
||||
| Expansion Enclosures |
JB 4024U |
||||
| Safety Standards |
Safety: UL, BSMI, CB Electromagnetic compatibility: CE, BSMI, FCC |
||||
| Power Supply Unit |
Power supplies: redundant and hot-swappable 1600W x 2 (80 PLUS Titanium) IAC voltage: 100-127VAC @12A, 200-240VAC @10A Frequency: 50-60 Hz |
||||
| Power Supply Unit |
Power supplies: redundant and hot-swappable 530W x 2 (80 PLUS Bronze) AC voltage: 100VAC @10A to 240VAC @5A Frequency: 50-60 Hz Note: Please use 200-240VAC for the 2U 24-bay models. |
||||
| Environmental |
Temperature: - Operating: 0°C to 40°C - Non-operating: -40°C to 60°C Altitude: - Operating: Sea level to 3,048 m (10,000 ft) - Non-operating: Sea level to 12,192 m (40,000 ft) Relative humidity: 5% to 95% non-condensing, operating or non-operating |
||||
| Service and Support |
Standard service: 3-year limited hardware warranty and 8x5 phone, web, and email support (batteries are covered under warranty for 2 years). Warranty extension: standard service can be extended up to 5 years. Service upgrade options: the following service can be upgraded to 5 years Upgrade: replacement part dispatch on the next business day. Advanced service: phone, web, and email support + onsite diagnostics on the next business day.. Premium service: phone, web, and email support + onsite diagnostics in 4 hours. Technical support: installation/maintenance guide, software/firmware download, troubleshooting and support tickets. Product services: product registration, licensing service, product repair, and order status. Note: Options may vary by region. For more details, please contact our sales representatives. |
||||
| Dimensions (W x H x D) |
449 x 88 x 830 mm (without chassis ears and protrusions) |
||||
| Package Dimensions (W x H x D) |
594 x 235 x 1106 mm |
||||

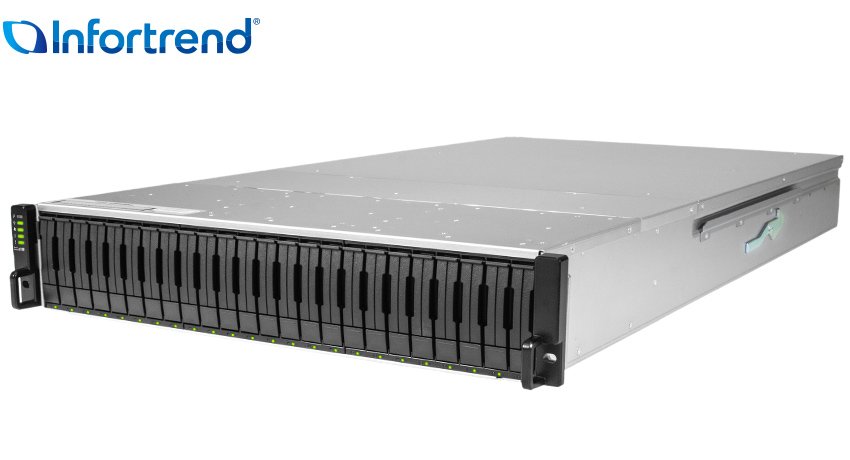

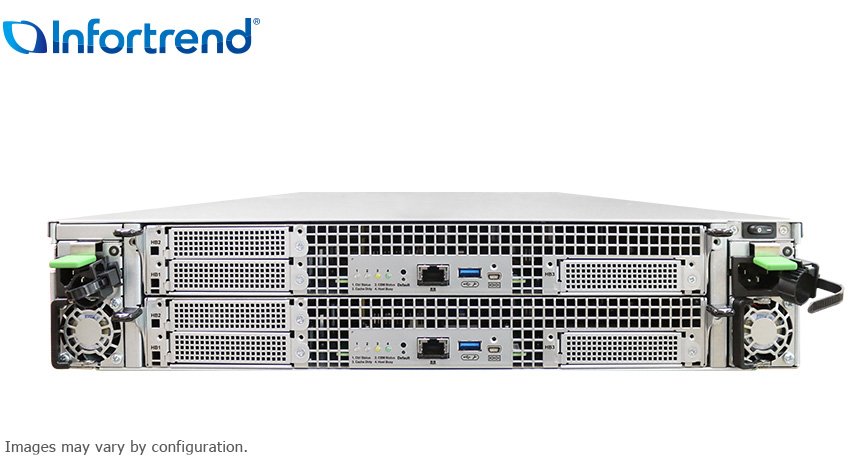

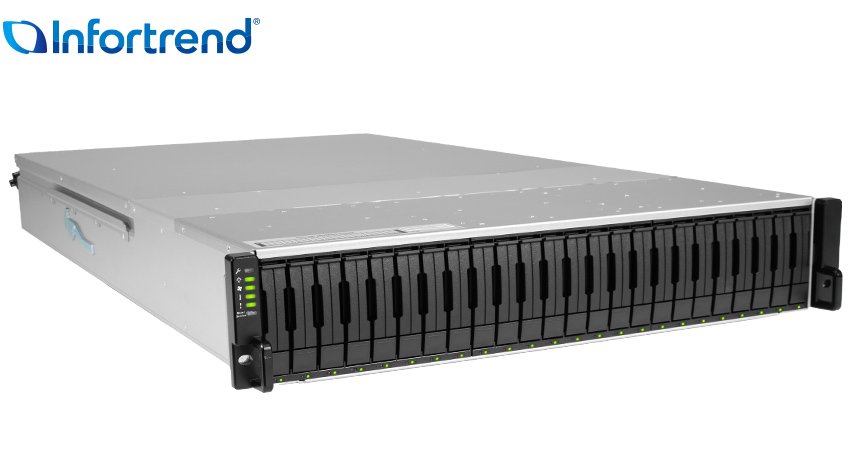

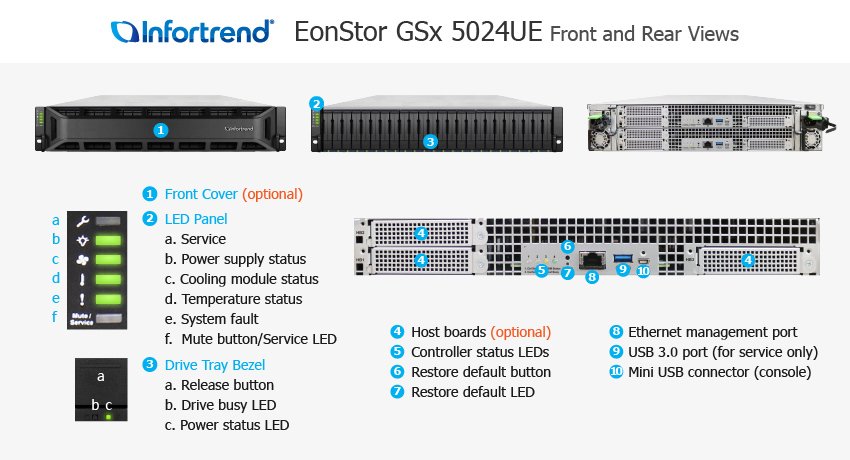

GSx 5024UE (2U 24-bay)
Filter by ticking your preference
Qty
EonStor GSx 5000E 2U/24bay NVMe All-Flash parallel file
storage, dualredundant controller subsystem including 6x host boardslots,
2x(PSU+FAN Module),2x(SuperCap.+Flash module), with bundle key
Qty
EonStor GSx 5000E 2U/24bay NVMe All-Flash parallel
file storage, dualredundant controller subsystem including 6x host board slots, 8x16GBmemory,
2x(PSU+FAN Module),2x(SuperCap.+Flash module), with bundle key
Qty
EonStor GSx 5000E 2U/24bay NVMe All-Flash parallel file
storage, dual redundant controller subsystem including 6x host board slots, 16x16GB memory,
2x(PSU+FAN Module),2x(SuperCap.+Flash module), with bundle key
Qty
EonStor GSx 5000E 2U/24bay NVMe All-Flash parallel file
storage, dual redundant controller subsystem including 6x host board slots, 16x32GB memory,
2x(PSU+FAN Module),2x(SuperCap.+Flash module), with bundle key
Qty
EonStor GSx 5000E 2U/24bay NVMe All-Flash parallel file
storage, dualredundant controller subsystem including 6x host board slots, 16x64GBmemory,
2x(PSU+FAN Module),2x(SuperCap.+Flash module), with bundle key
Qty
EonStor host board with 2 x 100Gb/s Ethernet ports (QSFP56), type 5
Qty
EonStor host board with 1 x 100Gb/s Ethernet ports (QSFP28), type 5
Qty
EonStor host board with 1 x 200Gb/s Ethernet ports (QSFP56), type 5
Qty
EonStor host board with 4 x 25Gb/s Ethernet ports (SFP28), type 5
Qty
EonStor host board with 2 x 25 Gb/s Ethernet ports (SFP28), type 5
Qty
EonStor host board with 4 x 32Gb/s FC ports, type 5
Qty
EonStor expansion board for NVMe expansion enclosure with 2x ports
Qty
U.2 NVMe SIE SSD, PCIe Gen5, 30.72TB, DWPD=1 for R model , with bundle key
Qty
U.2 NVMe SSD, PCIe Gen4, 1.92TB, DWPD=1 for R model
Qty
U.2 NVMe SSD, PCIe Gen4, 15.36TB, DWPD=1 for R model
Qty
U.2 NVMe SSD, PCIe Gen4, 3.84TB, DWPD=1 for R model
Qty
U.2 NVMe SSD, PCIe Gen4, 7.68TB, DWPD=1 for R model
Qty
2U/24bay dual redundant controller expansion enclosure
including 4x JBOF expansion ports, 2x (PSU + fan module), 24x drive trays, 2x JBOF
cables for storage or expansion enclosure and 1x Rackmount kit
Qty
1 year extended warranty for storage subsystem High End 2U 14-bay Generic models
Qty
2 year extended warranty for storage subsystem High End 2U 14-bay Generic models
Qty
Optical FC cable, for FC 16G, FC 32G, Ethernet 10G, 1M
Qty
Optical FC cable, for FC 16G, FC 32G, Ethernet 10G, 5M
Qty
Optical FC cable, for FC 16G, FC 32G, Ethernet 10G, 10M
Qty
RS232 for RAID subsystems, min. USB to DB-9;
maintenance-free duringcontroller failover/failback
Qty
Ethernet 25G passive copper cable, SFP28, 1m
Qty
Ethernet 25G passive copper cable, SFP28, 2m
Qty
100G QSFP28 optical transceiver, multi-mode
Qty
200G QSFP56 optical transceiver, multi-mode
Qty
25GbE SFP28 optical transceiver, LC, wave-length 850nm, multi-mode
Qty
Hisense 25GbE SFP28 optical transceiver, LC, wave-length 850nm, multi-mode
Qty
Finisar 32G Fibre Channel SFP28 optical transceiver, LC, wave-length850nm, multi-mode
Qty
Hisense 32G Fibre Channel SFP28 optical transceiver, LC, wave-length850nm, multi-mode.
Qty
100G QSFP28 to QSFP28 passive direct attach copper (DAC) cable, 1m
Qty
100G QSFP28 to QSFP28 passive direct attach copper (DAC) cable, 2m
Qty
100G QSFP28 to QSFP28 passive direct attach copper (DAC) cable, 3m
Qty
200G QSFP56 to QSFP56 passive direct attach copper (DAC) cable, 1m
Qty
200G QSFP56 to QSFP56 passive direct attach copper (DAC) cable, 2m
Qty
200G QSFP56 to QSFP56 passive direct attach copper (DAC) cable, 3m
Qty
Controller module with 1x (super capacitor+ flash module),
GSx5024UENVMe all-flash subsystem
Qty
Controller module with 64GB DIMM memory, 1x (super capacitor+ flashmodule),
GSx 5024UE NVMe all-flash subsystem
Qty
Controller module with 128GB DIMM memory, 1x (super capacitor+ flashmodule),
GSx 5024UE NVMe all-flash subsystem
Qty
Controller module with 256GB DIMM memory, 1x (super capacitor+ flashmodule),
GSx 5024UE NVMe all-flash subsystem
Qty
Controller module with 512GB DIMM memory, 1x (super capacitor+ flashmodule),
GSx 5024UE NVMe all-flash subsystem
Qty
Slide rail assembly, 23"~37" rack depth( EV 7000, 4U models)
Qty

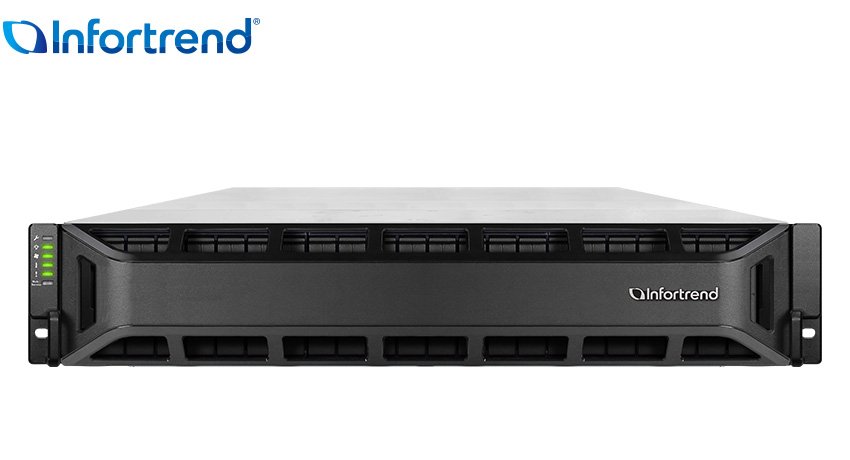

Front Cover for 2U subsystem
Qty
1600W CRPS 80 Plus Titanium Power supply unit
Qty
Super capacitor
Qty
SFF drive tray for U.2 NVMe SSD
Qty
16GB DDR-V ECC R-DIMM
Qty
32GB DDR-V ECC R-DIMM
Qty
64GB DDR-V ECC R-DIMM
