EonStor GSx 4000

Powerful SAS HDD Parallel File Storage

EonStor GSx 4000 facilitates parallel file access across multiple GSx appliances. With a single appliance delivering 7GB/s in read and write throughput, a 10-appliance GSx cluster can achieve nearly 10 times that performance. It offers high capacity and performance for HPC applications handling massive data volumes.

GSx SAS HDD Datasheet PDF Compatibility Guide (QVL) PDF Host Board & Memory Guide PDF
GSx 5000 ↗
Infortrend Enterprise Cloud Servers
Infortrend KSa 5016U Enterprise Cloud Server
Infortrend KSa 5008U Enterprise Cloud Server
Infortrend KSa 5008U Server
Infortrend KSa 5008U Server
Infortrend KSa 5008U Server
Infortrend KSa 5008U Server
Model GSx 4060 GSx 4090
Form Factor 4U 60-bay 4U 90-bay
Controller Dual redundant
Cache Backup Technology Super capacitor + flash module
CPU Intel® Xeon® D 6-core
File System Infortrend Parallel File System
Number of Appliances 1 to 10
Cache Memory 4U 60-bay: Default DDR4 24GB, up to 384GB
4U 90-bay: Default DDR4 32GB, up to 384GBff
Host Board Options 32Gb/s FC x 4
25GbE (SFP28) x 2, RDMA
25GbE (SFP28) x 4, RDMA
100GbE (QSFP28) x 1, RDMA
100GbE (QSFP56) x 2, RDMA
Note:
1. At least 24GB memory is required per controller to use RDMA
2. It is strongly recommended that you refer to Related Information Host Board and Memory Guide above for complete information, including supported combinations and important notes, before purchasing any host board for your model.
Supported Drives 2.5" 12Gb/s SAS 10,000 RPM HDD
3.5" 12Gb/s NL-SAS 7,200 RPM HDD
2.5" U.2 NVMe SSD (for U.2 SSD cache models; must be purchased from Infortrend)
Note: For the latest compatibility details, please refer to the Compatibility Guide.
Max. Drive Number Per appliance:
- 4U 60-bay: 150
- 4U 90-bay: 180
Per cluster:
- 4U 60-bay: 1500
- 4U 90-bay: 1800
Data Protection Disk protection: RAID 5, RAID 6
Cluster protection: Rsync
Data Services (optional) SSD Cache (block level, file level)
Supported OS Linux, Windows
Client Connections Leverages FC, iSCSI, iSER/RDMA
Management Web-based EonOne management software
User account management
Group management
Folder management - folder access control
Quota management
ACL control
Microsoft Active Directory (AD), Linux LDAP and NIS authentication
Notification Email, SNMP traps
Expansion Enclosures (JBODs) 4U 60-bay: JB 3060L, JB 3090
4U 90-bay: JB 3090
Safety Standards Safety: UL, BSMI, CB
Electromagnetic compatibility: CE, BSMI, FCC
Power Supply Unit (Global) Power supplies: redundant and hot-swappable
- 4U 60-bay: 1200W x 2 (80 PLUS Platinum)
- 4U 90-bay: 1600W x 2 (80 PLUS Titanium)
AC voltage:
- 4U 60-bay: 100-127VAC @10A, 200-240VAC @8A
- 4U 90-bay: 100-127VAC @12A, 200-240VAC @10A
Frequency: 50-60 Hz
Note: Please use 200-240VAC for the 4U 60-bay and 4U 90-bay models in both the global and EU versions.
Power Supply Unit (EU) Power supplies: redundant and hot-swappable
- 4U 60-bay: 1300W x 2 (80 PLUS Titanium)
- 4U 90-bay: 1600W x 2 (80 PLUS Titanium)
AC voltage:
- 4U 60-bay: 100-127VAC @10A, 200-240VAC @8.5A
- 4U 90-bay: 100-127VAC @12A, 200-240VAC @10A
Frequency: 50-60 Hz
Note: Please use 200-240VAC for the 4U 60-bay and 4U 90-bay models in both the global and EU versions.
Environmental Temperature:
- Operating: 0°C to 40°C
- Non-operating: -40°C to 60°C
Altitude:
- Operating: Sea level to 3,048 m (10,000 ft)
- Non-operating: Sea level to 12,192 m (40,000 ft)
Relative humidity: 5% to 95% non-condensing, operating or non-operating
Service and Support Standard service: 3-year limited hardware warranty and 8x5 phone, web, and email support (batteries are covered under warranty for 2 years).
Warranty extension: standard service can be extended up to 5 years.
Service upgrade options: the following service can be upgraded to 5 years
Upgrade: replacement part dispatch on the next business day.
Advanced service: phone, web, and email support + onsite diagnostics on the next business day..
Premium service: phone, web, and email support + onsite diagnostics in 4 hours.
Technical support: installation/maintenance guide, software/firmware download, troubleshooting and support tickets.
Product services: product registration, licensing service, product repair, and order status.
Note: Options may vary by region. For more details, please contact our sales representatives.
Dimensions (W x H x D) Without chassis ears and protrusions
4U 60-bay: 443.2 x 176 x 849.8 mm
4U 90-bay: 435 x 176 x 1088.8 mm
Package Dimensions (W x H x D) Including the pallet
4U 60-bay: 630 x 477 x 1150 mm
4U 90-bay: 620 x 585 x 1370 mm

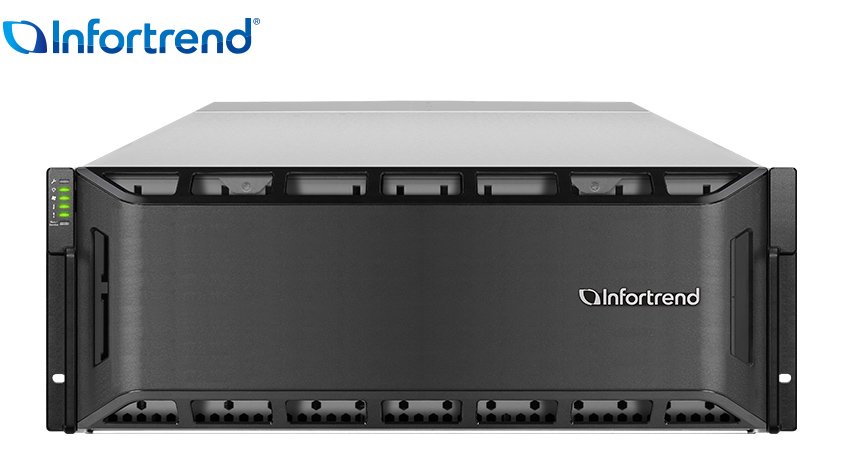

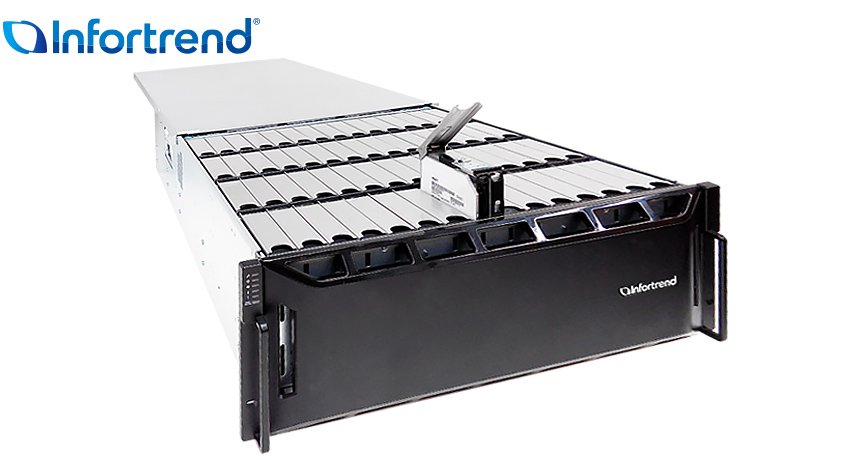

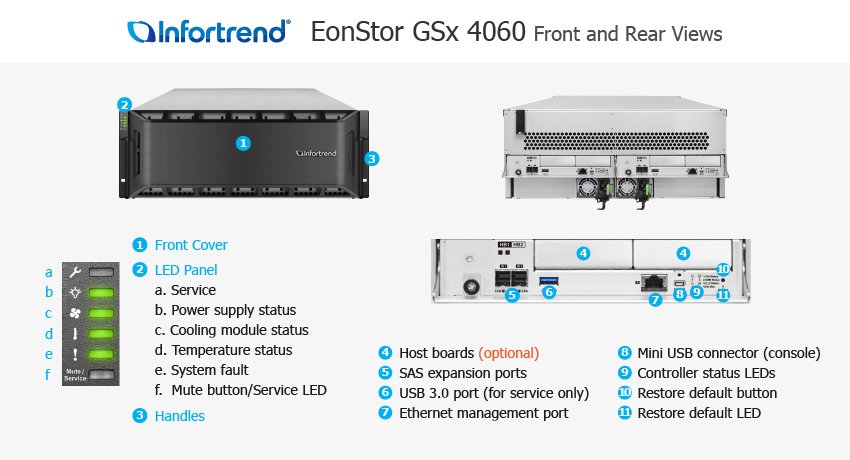

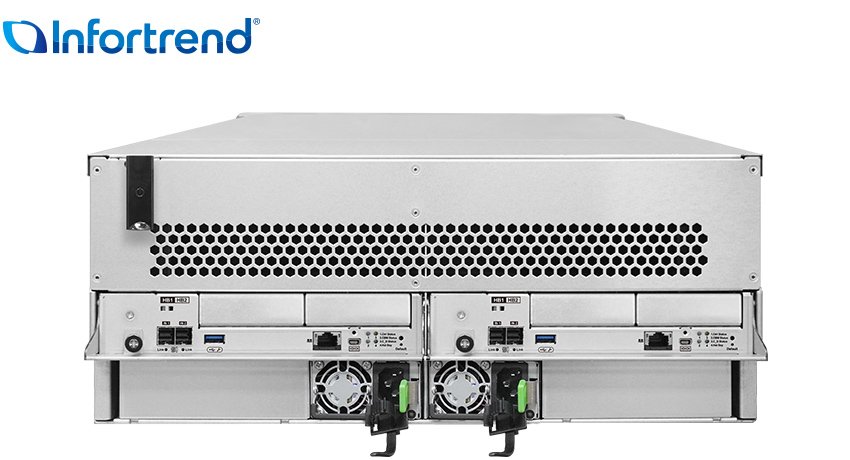

GSx 4060 (4U 60-bay)

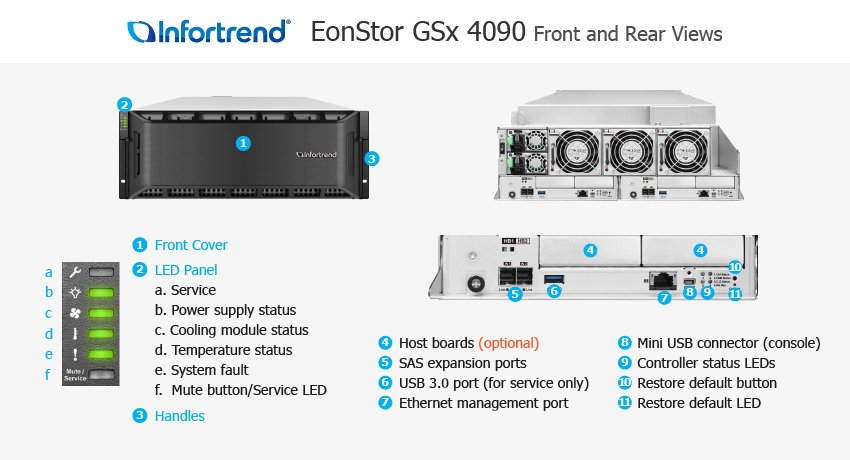

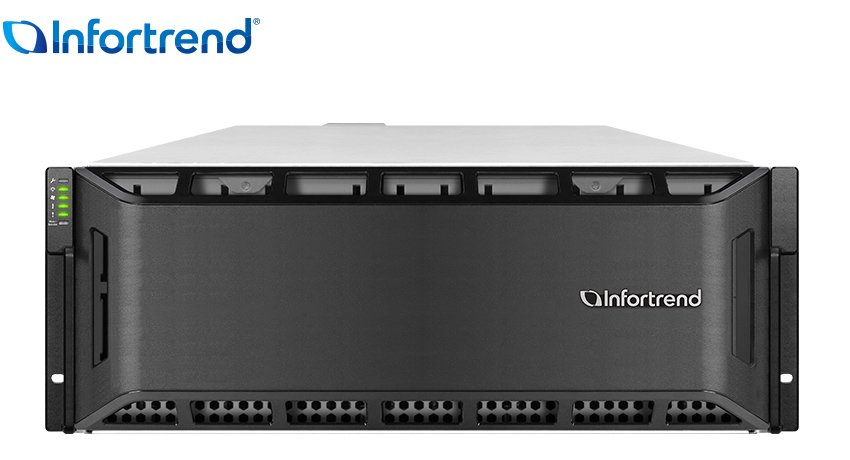

GSx 4090 (4U 90-bay)
