EonStor GSx 5000
High Performance SAS HDD Parallel File Storage
EonStor GSx 5000 features Intel Xeon Scalable CPUs and 200GbE RDMA, delivering 15GB/s read and 9.7GB/s write throughput. With scale-out capability, a 10-appliance cluster reaches nearly 10× that performance. Purpose-built for data-intensive HPC workloads, GSx 5000 provides parallel file access to massive datasets across multiple GSx appliances.
| Model | GSx 5090 | ||||
|---|---|---|---|---|---|
| Form Factor | 4U 90-bay | ||||
| Controller | Dual redundant | ||||
| Cache Backup Technology | Super capacitor + flash module | ||||
| CPU |
Intel® Xeon® Scalable 12-core |
||||
| File System |
Infortrend Parallel File System |
||||
| Number of Appliances |
1 to 10 |
||||
| Cache Memory |
Default DDR5 128GB, up to 1024GB | ||||
| Host Board Options |
32Gb/s FC x 4 25GbE (SFP28) x 2, RDMA 25GbE (SFP28) x 4, RDMA 100GbE (QSFP28) x 1, RDMA 100GbE (QSFP56) x 2, RDMA 200GbE (QSFP56) x 1, RDMA Note: It is strongly recommended that you refer to Related Information Host Board and Memory Guide above for complete information, including supported combinations and important notes, before purchasing any host board for your model. |
||||
| Supported Drives |
2.5" SAS SSD 2.5" 12Gb/s SAS 10,000 RPM HDD 3.5" 12Gb/s NL-SAS 7,200 RPM HDD 2.5" U.2 NVMe SSD (for U.2 SSD cache models; must be purchased from Infortrend) Note: For the latest compatibility details, please refer to the Compatibility Guide. |
||||
| Max. Drive Number |
Per appliance: 270 Per cluster: 2700 |
||||
| Data Protection |
Disk protection: RAID 5, RAID 6 Cluster protection: Rsync |
||||
| Supported OS |
Linux, Windows |
||||
| Client Connections |
Leverages FC, iSCSI, iSER/RDMA |
||||
| Management |
Web-based EonOne management software User account management Group management Folder management - folder access control Quota management ACL control Microsoft Active Directory (AD), Linux LDAP and NIS authentication |
||||
| Notification |
Email, SNMP traps |
||||
| Expansion Enclosures (JBODs) |
JB 4090 |
||||
| Safety Standards |
Safety: UL, BSMI, CB Electromagnetic compatibility: CE, BSMI, FCC |
||||
| Power Supply Unit |
Power supplies: redundant and hot-swappable 1600W x 2 (80 PLUS Titanium) IAC voltage: 100-127VAC @12A, 200-240VAC @10A Frequency: 50-60 Hz |
||||
| Environmental |
Temperature: - Operating: 0°C to 40°C - Non-operating: -40°C to 60°C Altitude: - Operating: Sea level to 3,048 m (10,000 ft) - Non-operating: Sea level to 12,192 m (40,000 ft) Relative humidity: 5% to 95% non-condensing, operating or non-operating |
||||
| Service and Support |
Standard service: 3-year limited hardware warranty and 8x5 phone, web, and email support (batteries are covered under warranty for 2 years). Warranty extension: standard service can be extended up to 5 years. Service upgrade options: the following service can be upgraded to 5 years Upgrade: replacement part dispatch on the next business day. Advanced service: phone, web, and email support + onsite diagnostics on the next business day.. Premium service: phone, web, and email support + onsite diagnostics in 4 hours. Technical support: installation/maintenance guide, software/firmware download, troubleshooting and support tickets. Product services: product registration, licensing service, product repair, and order status. Note: Options may vary by region. For more details, please contact our sales representatives. |
||||
| Dimensions (W x H x D) |
435 x 175.8 x 1063 mm (without chassis ears and protrusions) |
||||
| Package Dimensions (W x H x D) |
620 x 585 x 1370 mm (including the pallet) |
||||

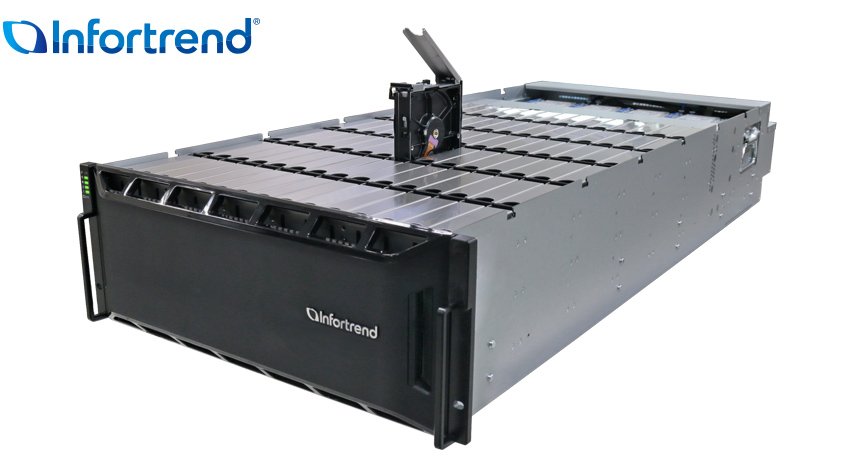

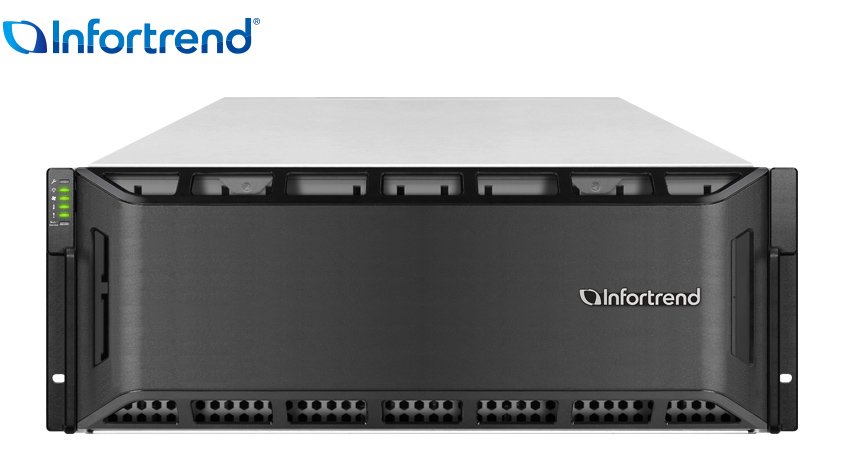

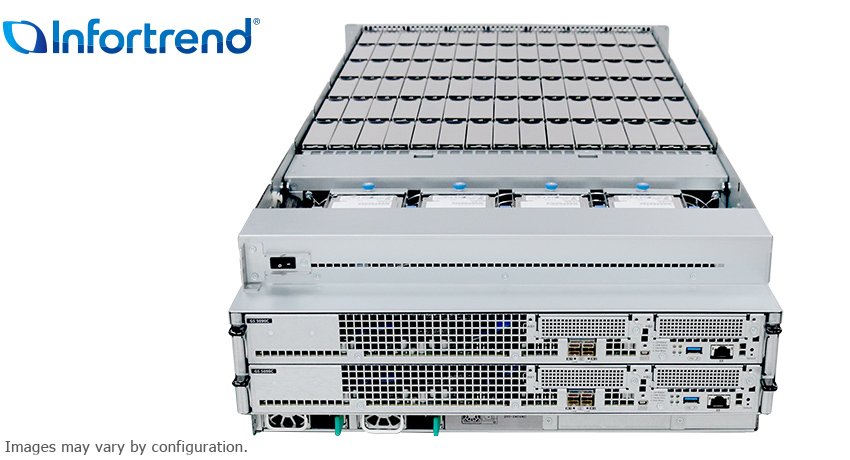

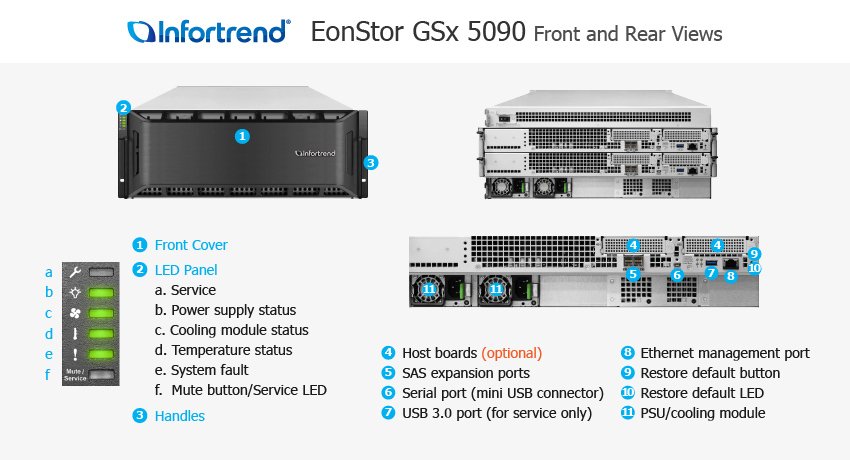

GSx 5090 (4U 90-bay)
Filter by ticking your preference
Qty
EonStor GSx 5000 4U/90bay parallel storage array, dual redundant
controller subsystem including 4x 24Gb/s SAS EXP. ports, 4x host boardslots, 2xPSU,
2x(SuperCap.+flash module), 90x drive traysand 1x Rackmount kit
Qty
EonStor GSx 5000 4U/90bay parallel storage array, dual redundant
controller subsystem including 4x 24Gb/s SAS EXP. ports, 4x host board slots, 8x16GB memory, 2xPSU,
2x(SuperCap.+flash module), 90x drive trays and 1x Rackmount kit
Qty
EonStor GSx 5000 4U/90bay parallel storage array, dual redundant
controller subsystem including 4x 24Gb/s SAS EXP. ports, 4x host board slots, 16x16GB memory, 2xPSU,
2x(SuperCap.+flash module), 90x drive trays and 1x Rackmount kit
Qty
EonStor GSx 5000 4U/90bay parallel storage array, dual redundant
controller subsystem including 4x 24Gb/s SAS EXP. ports, 4x host board slots, 16x32GB memory, 2xPSU,
2x(SuperCap.+flash module), 90x drive trays and 1x Rackmount kit
Qty
EonStor GSx 5000 4U/90bay parallel storage array, dual redundant
controller subsystem including 4x 24Gb/s SAS EXP. ports, 4x host board slots, 16x64GB memory, 2xPSU,
2x(SuperCap.+flash module), 90x drive trays and 1x Rackmount kit
Qty
EonStor GSx 5000 4U/90bay parallel storage array, dual
redundantcontroller subsystem including 4x 24Gb/s SAS EXP.
ports, 4x host boardslots, 2xPSU, 2x(SuperCap.+flash module),
94x drive trays(4x for U.2 SSD) and 1x Rackmount kit
Qty
EonStor GSx 5000 4U/90bay parallel storage array, dual
redundant controller subsystem including 4x 24Gb/s SAS EXP.
ports, 4x host board slots, 8x16GB memory, 2xPSU, 2x(SuperCap.+flash module),
94x drive trays (4x for U.2 SSD) and 1x Rackmount kit
Qty
EonStor GSx 5000 4U/90bay parallel storage array, dual
redundant controller subsystem including 4x 24Gb/s SAS EXP.
ports, 4x host board slots, 16x16GB memory, 2xPSU, 2x(SuperCap.+flash module),
94x drive trays (4x for U.2 SSD) and 1x Rackmount kit
Qty
EonStor GSx 5000 4U/90bay parallel storage array, dual
redundant controller subsystem including 4x 24Gb/s SAS
EXP. ports, 4x host board slots, 16x32GB memory, 2xPSU, 2x(SuperCap.+flash module),
94x drive trays (4x for U.2 SSD) and 1x Rackmount kit
Qty
EonStor GSx 5000 4U/90bay parallel storage array, dual
redundant controller subsystem including 4x 24Gb/s SAS EXP.
ports, 4x host board slots, 16x64GB memory, 2xPSU, 2x(SuperCap.+flash module),
94x drive trays (4x for U.2 SSD) and 1x Rackmount kit
Qty
EonStor host board with 2 x 100Gb/s Ethernet ports (QSFP56), type 5
Qty
EonStor host board with 1 x 100Gb/s iSCSI ports (QSFP28), type 5
Qty
EonStor host board with 1 x 200Gb/s Ethernet ports (QSFP56), type 5
Qty
EonStor host board with 4 x 25Gb/s Ethernet ports (SFP28), type 5
Qty
EonStor host board with 2 x 25 Gb/s Ethernet ports (SFP28), type 5
Qty
EonStor host board with 4 x 32Gb/s FC ports, type 5
Qty
Toshiba 3.5" HDD, SAS 12Gb/s, 22TB, 7200RPM
Qty
Toshiba 3.5" HDD, SAS 12Gb/s, 7200 RPM, 10TB
Qty
Toshiba 3.5" HDD, SAS 12Gb/s, 7200 RPM, 12TB
Qty
Toshiba 3.5" HDD, SAS 12Gb/s, 7200RPM, 24TB
Qty
Toshiba Enterprise 3.5" SAS 12Gb/s HDD, 16TB, 7200RPM
Qty
Toshiba Enterprise 3.5" SAS 12Gb/s HDD, 8TB, 7200RPM
Qty
U.3 NVMe SSD, PCIe Gen4, 15.36TB, DWPD=1 for Cache, with bundle key
Qty
U.3 NVMe SSD, PCIe Gen4, 3.84TB, DWPD=1 for Cache, with bundle key
Qty
U.3 NVMe SSD, PCIe Gen4, 7.68TB, DWPD=1 for Cache, with bundle key
Qty
Western Digital Enterprise 3.5" SAS 12 Gb/s HDD, 24TB, 7200RPM
Qty
EonStor GSx SSD Cache License
Qty
JB 4000 4U/90bay dual redundant controller expansion enclosure
including 8x SAS ports, 2x(PSU+FAN Module), 2x SAS cables for storage or expansionenclosure,
4x fan module, 90x3.5"drive trays and 1xRackmount kit
Qty
1 year extended warranty license for storage
Subsystem High-end level 4U90-bay Single/Redundant models
Qty
2 year extended warranty license for storage Subsystem High-end level 4U 90-bay Single/Redundant models
Qty
Optical FC cable, for FC 16G, FC 32G, Ethernet 10G, 1M
Qty
Optical FC cable, for FC 16G, FC 32G, Ethernet 10G, 5M
Qty
Optical FC cable, for FC 16G, FC 32G, Ethernet 10G, 10M
Qty
RS232 for RAID subsystems, min. USB to DB-9;
maintenance-free duringcontroller failover/failback
Qty
Optical FC cable, for Ethernet 25G, 100G and 200G, 2M
Qty
Optical FC cable, for Ethernet 25G, 100G and 200G, 3M
Qty
Optical FC cable, for Ethernet 25G, 100G and 200G, 5M
Qty
Ethernet 25G passive copper cable, SFP28, 1m
Qty
Ethernet 25G passive copper cable, SFP28, 2m
Qty
100G QSFP28 optical transceiver, multi-mode
Qty
200G QSFP56 optical transceiver, multi-mode
Qty
25GbE SFP28 optical transceiver, LC, wave-length 850nm, multi-mode.
Qty
Hisense 25GbE SFP28 optical transceiver, LC, wave-length 850nm, multi-mode
Qty
Finisar 32G Fibre Channel SFP28 optical transceiver, LC, wave-length850nm, multi-mode
Qty
Hisense 32G Fibre Channel SFP28 optical transceiver, LC, wave-length850nm, multi-mode.
Qty
Fibre Channel 8.5 / 4.25 / 2.125 GBd Small Form Pluggable
Optical Transceiver, LC, wave-length 850nm, multi-mode
Qty
SAS 24G external cable, Pull type, SFF-8674 to SFF-8674 (24G to 24G),400Centimeters
Qty
100G QSFP28 to QSFP28 passive direct attach copper (DAC) cable, 2m
Qty
100G QSFP28 to QSFP28 passive direct attach copper (DAC) cable, 3m
Qty
200G QSFP56 to QSFP56 passive direct attach copper (DAC) cable, 1m
Qty
100G QSFP28 to QSFP28 passive direct attach copper (DAC) cable, 2m
Qty
200G QSFP56 to QSFP56 passive direct attach copper (DAC) cable, 3m
Qty
Controller module with 2x host board slots and 1x (super capacitor +flash module), GSx 5090R subsystem.
Qty
Controller module with 2x host board slots and 1x (super capacitor+flash module), GSx 5090RC subsystem.
Qty
Controller module with 64GB DIMM memory, 2x host board slots and 1x (super capacitor +flash module), GSx 5090RC subsystem.
Qty
Controller module with 128GB DIMM memory, 2x host board slots and 1x (super capacitor +flash module), GSx 5090RC subsystem.
Qty
Controller module with 256GB DIMM memory, 2x host board
slots and 1x (super capacitor +flash module), GSx 5090RC subsystem.
Qty
Controller module with 512GB DIMM memory, 2x host board
slots and 1x (super capacitor +flash module), GSx 5090RC subsystem.
Qty
Controller module with 64GB DIMM memory, 2x host board
slots and 1x (super capacitor +flash module), GSx 5090R subsystem.
Qty
Controller module with 128GB DIMM memory, 2x host
board slots and 1x (super capacitor +flash module), GSx 5090R subsystem.
Qty
Controller module with 256GB DIMM memory, 2x host board
slots and 1x (super capacitor +flash module), GSx 5090R subsystem.
Qty
Controller module with 512GB DIMM memory, 2x host board
slots and 1x (super capacitor +flash module), GSx 5090R subsystem.
Qty
Cable organizer for 4U 90-bay model
Qty
Super capacitor
Qty
2700W power supply unit
Qty
LFF drive tray for 2.5" drive only
Qty
Slide rail assembly, 42" or higher rack depth
Qty
Cooling fan module for GS 90-bay
Qty
LFF drive tray for 3.5" drive only(for 4U 60-bay L model)
Qty
Default Included Front Cover for 4U subsystem
Qty
LFF drive tray for 2.5" drive only(for 4U 60-bay L model)
Qty
16GB DDR-V ECC R-DIMM
Qty
32GB DDR-V ECC R-DIMM
Qty
64GB DDR-V ECC R-DIMM
