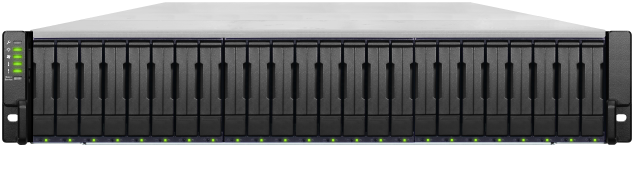

The innovative EonStor GS 5024U is the flagship U.2 NVMe hybrid flash unified storage solution, purpose-built to accelerate the modern compute-intensive workloads. Featuring major hardware enhancements, including Intel® Xeon® 6 processor and PCIe 5.0 NVMe SSD support, GS 5024U delivers unmatched performance to meet the demanding requirements of AI and HPC applications.
Provides 125GB/s block read throughput, 2.4M IOPS, and 0.3 ms latency
Delivers sustained high throughput in parallel file systems like Lustre, ensuring GPUs and CPUs stay fed with data and maximizing computing efficiency
Offers up to 1.4PB with 24 U.2 NVMe SSDs and scales with U.2 NVMe SSD or SAS HDD storage expansions
Adaptable to all enterprise applications
Including scale-out and scale-up
With dual-redundant controllers and a cross-site HA Cluster
To ensure your data remains intact
Including data deduplication, compression, and storage tiering
To optimize SSD lifespan
Optimized for maximum speed and low latency.
High performance and massive capacity at lower cost.
See hardware configurations required to reach maximum performance benchmarks.

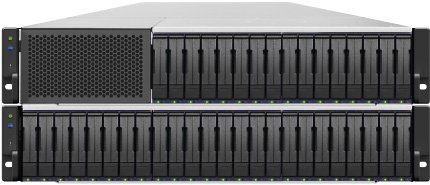

AI training involves processing of massive datasets with widely varying file sizes, which can create bottlenecks for GPU utilization if storage cannot keep up. GS 5024U delivers extreme performance and ultra-low latency, efficiently handling data-intensive sequential reads. With scalable capacity up to 5.6PB via NVMe SSD expansion, it can easily store growing datasets.

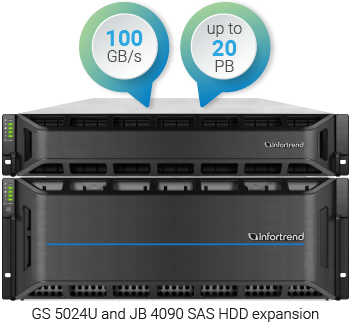

HPC workloads require high-performance sequential read/write access to large files, demanding storage that combines both speed and capacity. GS 5024U delivers high throughput and scales with multiple 90-bay HDD expansions to meet HPC requirements. Its U.2 SSDs can store Lustre metadata, eliminating the need for a separate metadata server and reducing deployment costs.
Media production requires storage with extreme performance and the ability to support multiple users working simultaneously without frame drops or interruptions. GS 5024U delivers the extreme throughput and responsiveness for 4K/8K video editing, VFX, and rendering, supporting up to 340 4K streams and enabling multiple media editors to work together at full efficiency.
EDA workflows demand high-performance storage to handle massive volumes of design files for simulation, layout, and verification tasks, where bottlenecks can slow progress. GS 5024U delivers over 640K file read IOPS, accelerating time-to-market, and with up to 5.6PB capacity via NVMe SSD expansion, it can easily store the data generated in semiconductor development.
